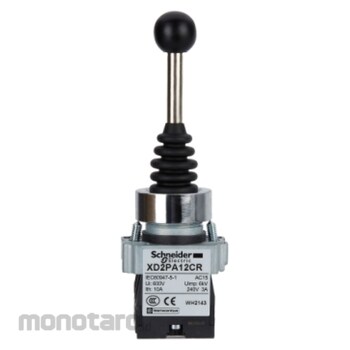

Schneider Electric Joystick Controller Easy Harmony XB2 Plastic XD2PA12CR 1pc
Rp432.789 Rp389.900
Spesifikasi Produk
| Model Number | XD2PA12CR |
|---|---|
| Unit | 1pc |
| Product Range | Easy Harmony XB2 |
| Product or Component Type | Complete joystick controller |
| Device Short Name | XD2 |
| Mounting Diameter (mm) | 22.5 |
| Bezel Material | Chromium plated metal |
| Device Presentation | Complete product |
| [Ui] Rated Insulation Voltage (V) | 600 (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 6 conforming to IEC 60947-1 |
| Operator Position Information | All positions |
| Contacts Type And Composition | 2 NO for slow-break |
| Short-Circuit Protection (A) | 10 (gG (gl) gL fuse conforming to IEC 60947-5-1) |
| Connections - Terminals | Screw clamp terminal, <= 2 x 1.5 mm² with and without cable ends; Screw clamp terminal, <= 1 x 2.5 mm² with and without cable ends; Screw clamp terminal, >= 1 x 0.5 mm² with and without cable ends; Faston terminals, connection size: 6.3 mm |
| Shape of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4mm screwdriver; Slotted compatible with flat Ø 5.5mm screwdriver |
| Electrical Durability | 1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Electrical Reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Contact Code Designation | A600-Q600 |
| Overvoltage Category | Class I conforming to IEC 60536 |
| Mechanical Durability (cycles) | 1000000 |
| Operator Direction Information | 2 directions |
| Contacts Usage | Standard contacts |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 07 July 2025 |
| Terakhir Diperbaharui | 17 March 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This 22mm complete joystick provides an ergonomic interface for controlling your machine. It is easily installed and into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is vibration, high pressure washer and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
