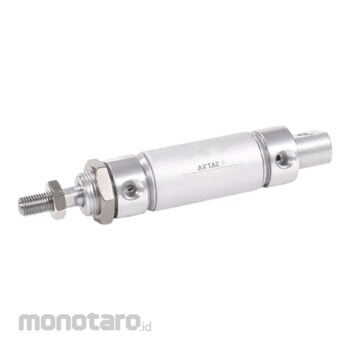

Airtac Single Acting Mini Cylinder Alumunium Barrel MSBL Series MSBL 20x300 SCA 1pc
Rp676.989 Rp609.900
Spesifikasi Produk
| Model Number | MSBL 20x300 SCA |
|---|---|
| Unit | 1pc |
| Bore Size (mm) | 20 |
| Stroke (mm) | 300 |
| Magnet | With Magnet |
| Back Cover | CA (Pivot Type) |
| Acting Type | Singlr acting |
| Fluid | Air (to be filtered by 40 μm filter element) |
| Operating Pressure (MPa) | 0.2-1 |
| Proof Pressure (MPa) | 1.5 |
| Temperature (°C) | -20-70 |
| Speed Range (m/s) | 50-800 |
| Stroke Tolerance | 0~150 (+1.0); >150 (+1.5) |
| Cushion Type | MBLC, MBLCD, MBLCJ: Adjustable cushion; Others: Bumper |
| Port Size (inch) | 1/8 |
| Thread Type | PT |
| Berat (Kg) | 1.1 |
| Tanggal Produk Terdaftar | 27 December 2024 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Riveted structure is adopted to connect front and bak cover and cylinder tube to make it credibility.Piston adopts heterogeneous two-way seal structure.
It has compact size and has the function of grease reservation.
There are several modes of back cover, which makes the installation of cylinder more convenient.
There are cylinders and mounting accessories with several specifications for your choice.
