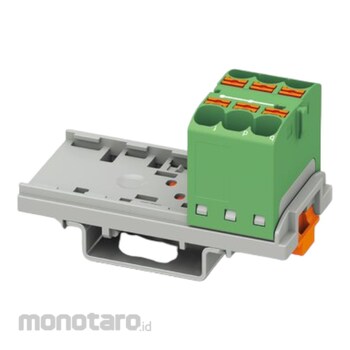

Phoenix Contact Terminal Block Power Distribution Type (Terminal Panel Listrik) PTFIX 6X4-NS35 GN Green 1pack(8pcs)

Name: Phoenix Contact Terminal Block Power Distribution Type (Terminal Panel Listrik) PTFIX 6X4-NS35 GN Green 1pack(8pcs)
Brand: Phoenix Contact
SKU: S038531736
Price: 965589 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S038531736

Wishlist

Spesifikasi Produk

Model Number	PTFIX 6X4-NS35 GN
Unit	1pack(8pcs)
Product Type	Distributor terminal block
Operating Ambient Temperature (°C)	-60 to 105 (max. short-term operating temperature RTI Elec.)
Width (mm)	28.6
Flammability Rating According To Ul 94	V0
Color	Green
Height (mm)	58.1
Storage/Transport Ambient Temperature (°C)	-25 to 60 (for a short time, not exceeding 24 h, -60 to +70 )
Overvoltage Category	III
Degree of Pollution	3
Rated Surge Voltage (kV)	6
Ambient Temperature for Assembly (°C)	-5 to 70
Conductor Cross Section Flexible (mm²)	0.2 to 4
Insulating Material	PA
Permissible Humidity (Storage/Transport) (%)	30 to 70
Stripping Length (mm)	10 to 12
Maximum Power Dissipation for Nominal Condition (W)	1.02
Time of Exposure (s)	30
Test Duration per Axis (hour)	5
Shock Duration (ms)	18
Pulse Shape	Half-sine
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 September 2023
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Distribution block, Block with vertical alignment, nom. voltage: 800 V, nominal current: 32 A, number of connections: 6, connection method: Push-in connection, cross section: 0.2 mm2 - 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: green

Dokumentasi Produk

Datasheet_3273534
