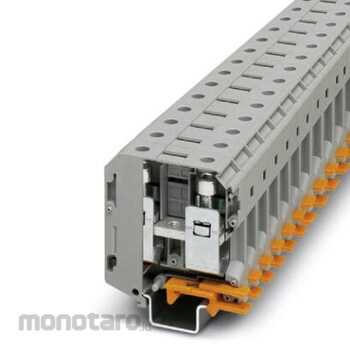

Phoenix Contact Terminal Block High Voltage (Terminal Panel Listrik) UKH 70 1pc

Name: Phoenix Contact Terminal Block High Voltage (Terminal Panel Listrik) UKH 70 1pc
Brand: Phoenix Contact
SKU: S028926078
Price: 577089 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S028926078

Wishlist

Spesifikasi Produk

Model Number	UKH 70
Unit	1pc
Country of Origin	CN (China)
Color	Gray
Insulating Material	PA
Rated Surge Voltage (kV)	8
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Maximum Load Current (A)	192 (with 70 mm² conductor cross section)
Nominal Current IN (A)	192
Nominal Voltage Un (V)	1000
Open Side Panel	No
Back of the Hand Protection	Guaranteed
Area Of Application	Plant engineering; Machine building; Railway industry
Number of Positions	1
Mounting Type	NS 35/7,5
Potentials	1
Number of Rows	1
Number of Connections	2
Nominal Cross Section Area (mm²)	70
Part Number	3213140
Berat (Kg)	153.5
Tanggal Produk Terdaftar	29 September 2021
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

High-current terminal block, nom. voltage: 1000 V, nominal current: 192 A, connection method: Screw connection, number of connections: 2, number of positions: 1, cross section: 16 mm² - 95 mm², AWG: 4 - 3/0, width: 20.3 mm, height: 78.3 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 35/15-2,3, NS 32
