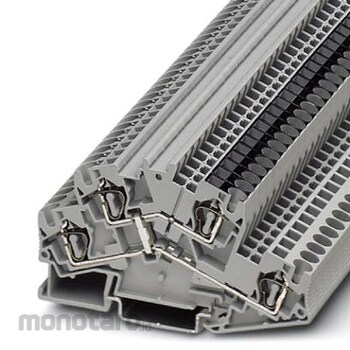

Phoenix Contact Terminal Block Feed-Through (Terminal Panel Listrik) STTBS 4-PV 1pc

Name: Phoenix Contact Terminal Block Feed-Through (Terminal Panel Listrik) STTBS 4-PV 1pc
Brand: Phoenix Contact
SKU: S028895268
Price: 155289 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S028895268

Wishlist

Spesifikasi Produk

Model Number	STTBS 4-PV
Unit	1pc
Country of Origin	PL (Poland)
Color	Gray
Insulating Material	PA
Rated Surge Voltage (kV)	6
Degree of Pollution	3
Overvoltage Category	III
Insulating Material Group	I
Maximum Load Current (A)	34 (in case of 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current ofll connected conductors.)
Nominal Current IN (A)	28 (with 4 mm² conductor cross section)
Nominal Voltage Un (V)	500
Open Side Panel	Yes
Connection In Acc. With Standard	IEC 60947-7-1
Back of the Hand Protection	Guaranteed
Finger Protection	Guaranteed
Bending Test Rotation Speed (rpm)	10
Bending Test Turns	135
Bending Test Conductor Cross Section per Weight (mm²/kg)	0.08/0.1
Surge Voltage Test Setpoint (kV)	7.3
Number of Rows	2
Part Number	3035085
Berat (Kg)	18.6
Tanggal Produk Terdaftar	29 September 2021
Terakhir Diperbaharui	02 February 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Feature

Double-level terminal block, With equipotential bonder, connection method: Spring-cage connection, cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15
