SKF Radial Shaft Seal Tipe HMSA10 Karet Fluoro Diameter Shaft 12mm 12X30X7 HMSA10 V 1pc

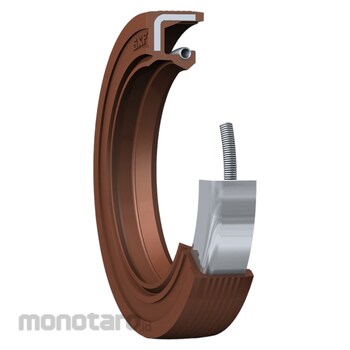

Name: SKF Radial Shaft Seal Tipe HMSA10 Karet Fluoro Diameter Shaft 12mm 12X30X7 HMSA10 V 1pc
Brand: SKF
SKU: S011125457
Price: 49839 IDR
Availability: InStock

0 Ulasan

#Nomor SKU S011125457

Wishlist

Spesifikasi Produk

Model Number	12X30X7 HMSA10 V
Unit	1pc
Shaft Diameter d1 (mm)	12
Housing Bore Diameter D (mm)	30
Seal Width b (mm)	7
Allowable Circumferential Speed (m/s)	9.19
Rotation Speed (rpm)	14626
Design	HMSA10
Auxiliary Lip	Yes
Sealing Lip Material	Fluoro rubber (FKM)
Type of Outside Diameter	Rubber metal reinforced
Unit System	Metric
Minimum Operating Temperature (°C)	min. -20
Maximum Operating Temperature (°C)	max. 200
Operating Temperature for Short Periods (°C)	max. 200
Circumferential Speed (m/s)	max. 9.19
Maximum Rotation Speed (rpm)	max. 14626
Pressure Differential (N/mm²)	0.05
SKF Speedi-Sleeve	99049
M Code	17472245
Berat (Kg)	0.8
Tanggal Produk Terdaftar	30 August 2019
Terakhir Diperbaharui	08 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

Warning

Image may differ from product. See the technical specification for details.

Feature

- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
