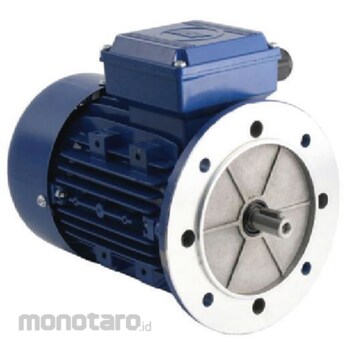

Marelli Motori Electric Motor B5 Cast Iron 18.5kW 6 Pole (1000rpm) 1pc

Name: Marelli Motori Electric Motor B5 Cast Iron 18.5kW 6 Pole (1000rpm) 1pc
Brand: Marelli Motori
SKU: S047925670
Price: 33999900 IDR
Availability: OutOfStock

#Nomor SKU S047925670

Wishlist

0 Ulasan

Spesifikasi Produk

Unit	1pc
Material	Cast Iron
Motor Type	BAA 200 LA6
Rated Output (kW)	18.5
Rated Speed (rpm)	1000
Sound Pressure Level (dB(A))	76
Moment of Inertia J (kg.m²)	0.315
IP Protection	IP55
Insulation class	F
Efficiency 100%	90.2
Efficiency 75%	90.2
Efficiency 50%	88.9
Power Factor (cos)	0.81
Current (Iₙ) (A)	36.6
Starting Current (Iₐ/Iₙ) (p.u.)	6.7
Rated Torque (Tₙ) (Nm)	182
Starting Torque (Tₐ/Tₙ) (p.u.)	2.2
Breakdown Torque (Tₘₐₓ/Tₙ) (p.u.)	2.8
Insulation System	Low Voltage
Berat (Kg)	208.0
Tanggal Produk Terdaftar	29 August 2025
Terakhir Diperbaharui	01 September 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

GENERAL SPECIFICATIONS
- Rated outputs and efficiency values are in accordance with IEC 60034-30-1;
- all parameters are measured in accordance with IEC 60034-2-1;
- continuous duty (S1) with sufficient thermal margins to withstand short overloads;
- IP 55 protection degree;
- Insulation class F / Temperature rise class B;
- + 40°C maximum ambient temperature;
- 1000 m a.s.l. installation.

Peringatan

- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website

Feature

- Terminal box can be rotated by 90°;
- drive end locked bearing from 160 mm frame size;
- PTC in main terminal box from 160 mm frame size;
- grease nipples (drive end and non drive end) as standard from 160 mm frame size.
