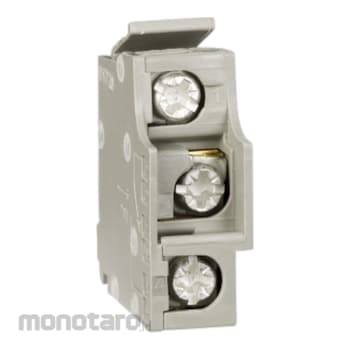

Schneider Electric Kontak Bantu 29452 Low Level 1pc

Name: Schneider Electric Kontak Bantu 29452 Low Level 1pc
Brand: Schneider Electric
SKU: S047330719
Price: 919900 IDR
Availability: OutOfStock

#Nomor SKU S047330719

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	29452
Unit	1pc
Product or Component Type	Auxiliary contact
Device Short Name	SD; SDV; OF; SDE
Device Application	Breaker status monitoring
Signal Contacts Composition	1 NO/NC
Local Signalling	ON/OFF indication for open/close; Trip indicator for relay trip indicator; Fault trip for electrical fault
Auxiliary Contacts Type	Low level
Mounting Mode	Clip-on
[Ith] Conventional Free Air Thermal Current (A)	5
Fault Type	General electric fault
Minimum Load (mA)	1 (at 4V DC)
Berat (Kg)	0.1
Tanggal Produk Terdaftar	07 July 2025
Terakhir Diperbaharui	09 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

It is a single low-level auxiliary contact that provides all the different indications remotely for Compact NSX, Compact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 1MA at 4 VDC for utilization categories AC12/AC15/DC12/DC14. One device embeds 5 auxiliaries contact type. It complies with IEC 60947-5-1 standard.
