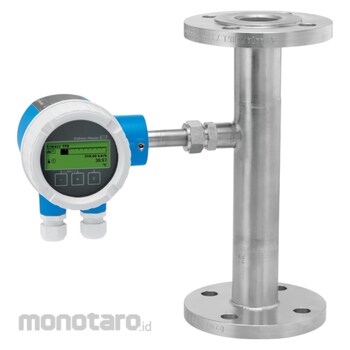

Proline t-mass A 150
thermal mass flowmeter
6AAB50-AADBCAASAD23K
The flowmeter for cost-effective measurement and easy monitoring of utility gases
Sensor Features
Optimal process monitoring – easy measurement even at low pressures and flow velocities. Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free. Reliable flow trending – multivariable measurement.
Inline version: DN 15 to 50 (½ to 2"). Process pressure up to PN 40, Class 300. A variety of process connections available.
Transmitter Features
Fast and efficient commissioning – guided operating menus. High plant availability – self‐diagnostics and error monitoring. Automatic recovery of data for servicing.
Device in compact version with DC 24 V power supply. 4-20 mA HART, pulse/frequency/switch output. Compact and robust transmitter.
Endress Hauser Proline t-mass A 150 Series Thermal Mass Flowmeter 6AAB50-AADBCAASAD23K Flow Meter, 0.5kg/h Min, 1365 Max 1pc
Rp119.999.900
Persediaan
Spesifikasi Produk
| Model Number | 6AAB50-AADBCAASAD23K |
|---|---|
| Unit | 1pc |
| Measuring Principle | Thermal |
| Wetted Materials | Transducer: 1.4404 (316L) Insertion tube: 1.4404 (316L) Measuring tube: 1.4404 (316L); 1.4435 (316L) Connection: 1.4404 (F316/F316L); 1.4404 (316L); 1.4435 (316L) |
| Measured Variables | Mass flow, temperature, corrected volume flow, FAD volume flow |
| Medium Temperature Range (°C) | –40 to +100 |
| Ambient Temperature Range (°C) | –40 to +60 |
| Ambient Temperature Range (°F) | –40 to +140 |
| Degree of Protection | IP66/67, type 4X enclosure |
| Output | 4‐20mA HART (active) Pulse/frequency/switch output (passive) |
| Input | Status input |
| Power Supply (V) | DC 18 to 30 |
| Measuring/Application Task | Gas |
| Product Headline | The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in small line sizes. |
| Nominal Diameter Range | DN 15 to 50 (½ to 2inch) |
| Maximum Measuring Error (%) | 3 o.r. 4 o.r. 5 o.f.s. (depending on chosen option of ordering feature "Calibration flow") |
| Measuring Range (kg/hour) | 0.5 to 910 (1.1 to 2002 lb/h) 0.5 to 1365 (1.1 to 3003 lb/h) (for air, depending on chosen option of ordering feature "Calibration flow") |
| Maximum Process Pressure | PN 40, Class 300 |
| Media Temperature Range (°F) | –40 to +212 |
| Transmitter Housing Material | AlSi10Mg, coated |
| Display/Operation | 4‐line display with push Buttons Configuration via local display and operating tools possible |
| Digital Communications | HART |
| Berat (Kg) | 1.7 |
| Tanggal Produk Terdaftar | 13 June 2025 |
| Terakhir Diperbaharui | 16 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Suitable for air, nitrogen, carbon dioxide and argon in small line sizesOptimal process monitoring – easy measurement even at low pressures and flow velocities
Cost-effective measurement – easy installation, negligible pressure loss and maintenance-free
Reliable flow trending – multivariable measurement
Fast and efficient commissioning – guided operating menus
High plant availability – self-diagnostics and error monitoring
Automatic recovery of data for servicing
Use
Field of applicationThe t-mass A 150 inline device is specially designed for the cost-effective measurement of utility gases, in particular compressed air. It is a trending device aimed at sub-metering applications. its 4-wire technology is contained within a rugged compact aluminum housing. It is orderable either with display or as a blind version. Customer-specific settings are saved on the display and can be transferred from one device to another by means of the display.
Measuring principle is characterized by a high operable flow range and direct mass flow measurement
Suitable for air, nitrogen, carbon dioxide and argon in small line sizes.
Device properties
Inline version: nominal diameter DN 15 to 50 (1/2 to 2")
Process pressure up to PN 40, Class 300
A variety of process connections available
Device in compact version with DC 24 V power supply
4-20 mA HART, pulse/frequency/switch output
Compact and robust transmitter
