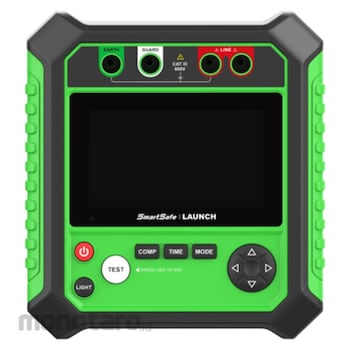

SmartSafe iSmartEV Insulation Tester RT100 1unit

Name: SmartSafe iSmartEV Insulation Tester RT100 1unit
Brand: SmartSafe
SKU: S046460271
Price: 11999900 IDR
Availability: OutOfStock

#Nomor SKU S046460271

SmartSafe

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RT100
Unit	1unit
Output voltage (V)	500/1000/2500/5000
Insulation Resistance	500V: 10MΩ-20GΩ, 1000V: 10MΩ-40GΩ, 2500V: 10MΩ-100GΩ, 5000V: 10MΩ-1000GΩ
Short-Circuit Current (mA)	<3.0
AC Measurement	±30V-±600 VAC, Resolution: 1V, Accuracy: ±2%
Display Size (inch)	5
Battery	11.4V, 3150mAh
Temperature (°C)	0-50
Dimensions (mm)	190x207x72
DC Measurement	±30V-±600V DC, Resolution: 1V, Accuracy: ±2%
Berat (Kg)	5.0
Tanggal Produk Terdaftar	14 May 2025
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

A special insulation resistance measurement tool for electrical vehicles that supports three modes-comparative measurement, continuous measurement, and timed measurement. It can also measure AC and DC voltage.

Feature

- Flexible application
Measure insulation resistance and AC/DC voltage:
supports three modes-comparative measurement, continuous measurement, and timed measurement.
- Intelligent alarm
Low resistance alarm and over range alarm.
- Automatic shutdown
Energy-saving feature-automatically shuts down when not operated for 15 minutes.
- Wide measurement range
For different output voltages, resistance measurement ranges from 10ΜΩ to 1000GΩ.
- Large screen backlight
5-inch display and LCD backlight for measurement in dark and low-light environments.
- Protection alarm
Reverse polarity, too high temperature, short overcurrent, fan failure, too high voltage, too large current will be alarmed.
