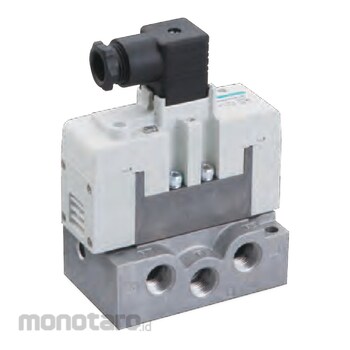

CKD Air Operated Valve PV5G-6-FHG-D-3-N 1pc
Rp2.799.900
Persediaan
Spesifikasi Produk
Model Number | PV5G-6-FHG-D-3-N |
---|---|
Unit | 1pc |
ISO Size | 1 |
Solenoid Position | (P pressurization type) 3-position all ports closed |
Voltage (VDC) | 24 |
Response Time (ms) | 300 (when ON), 50 (when Neutral) |
Working Fluid | Compressed air |
Maximum Working Pressure (MPa) | 1.0 |
Minimum Working Pressure (MPa) | 0.20 |
Fluid Temperature (°C) | 5 to 60 |
Lubrication | Not required |
Degree of Protection | Dust/jet-proof (equivalent to IP65) |
Vibration Resistance (m/s²) | 50 or less |
Shock Resistance (m/s²) | 300 or less |
Atmosphere | Containing corrosive gas is impermissible |
With Indicator Light and Surge Suppressor | Yes |
Valve Type and Operation | Pilot-operated soft spool valve |
Leakage (cm³/minute) | 10 (ANR) or less (A, B->R port) |
Berat (Kg) | 1.1 |
Tanggal Produk Terdaftar | 11 March 2025 |
Terakhir Diperbaharui | 27 May 2025 |
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsKetentuan dan Kondisi Barang
