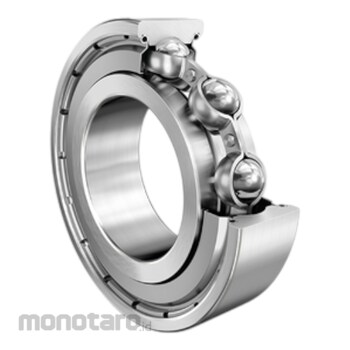

FAG Deep Groove Ball Bearing Z Type 6207-Z 1pc

#Nomor SKU S045381812

Spesifikasi Produk

Model Number	6207-Z
Unit	1pc
Bore Diameter (D) (mm)	35
Basic Dynamic Load Rating, Radial (Cr) (N)	27500
Basic Static Load Rating, Radial (C0r) (N)	15300
Fatigue Load Limit, Radial (Cur) (N)	950
Minimum Diameter Shaft Shoulder (da min) (mm)	42
Maximum Diameter of Housing Shoulder (Da max) (mm)	65
Maximum Fillet Radius (ra max) (mm)	1
Caliber Diameter Outer Ring (D2) (mm)	63.34
Shoulder Diameter Inner Ring (d1) (mm)	47.2
Calculation Factor (f0)	13.8
Sealing	Non-contact shield on one Side (Z)
Cage	Steel sheet metal (JN)
Outside Diameter (D) (mm)	72
Width (B) (mm)	17
Limiting Speed (nG) (1/minute)	13800
Reference Speed (n ϑr) (1/minute)	10400
Minimum chamfer dimension rmin (mm)	1.1
Shoulder Diameter Outer Ring D1 (mm)	60.66
Operating Temperature Min. (Tmin) (°C)	-30
Operating Temperature Max. (Tmax) (°C)	120
Tolerance Class	Normal (PN)
Dimensional / Heat Stabilization	Rings dimensional stabilized up to 120° (SN)
Lubricant	Without (Bearing not greased)
Radial Internal Clearance	CN (Group N), normal internal clearance
Bore Type	Cylindrical (Z)
Berat (Kg)	0.2
