Free power supply of AC100 to 240V.
High accuracy achieved by adopting ceramic oscillator oscillation counting method.
Equipped with easy-to-read operation indicator.
Can be changed to flush-mount type with DIN48mm square adapter.
Compliant with major overseas safety standards. UL, c-UL certified. EN standard compliant.
Attribute
Operating time variation : ±0.2%, ±10ms
Minimum Suitable Load : DC5V・10mA (reference value)
Set Error : ±10%
Operational Mode : On delay, Interval on, Flicker, Flicker on
Altitude (m) : 0 to 2000 (when in use), 0 to 3000 (when transported)
Pollution level (usage environment) : 2(IEC60664-1)
Impact resistance (m/ s2 ) : Malfunction: 98, Endurance: 490, XYZ direction, 6 directions 3 times each
Vibration resistance : [Durability] 10 to 55 Hz, half amplitude 0.75 mm, 2 hours each in XYZ direction / [Malfunction] NO contact: 10 to 55 Hz, half amplitude 0.75 mm / NC contact: 10 to 55 Hz, half amplitude 0.35 mm / 2 hours each in XYZ direction
Maximum opening and closing capacity : AC960VA/DC120W
Maximum switching current : 5A
Overvoltage Protection : III (IEC60664-1)
Voltage Error : ±0.2%, ±10ms
Temperature Error : ±0.2%, ±10ms
Durability : Electrical: 100,000 times or more (rated load), Mechanical: 20 million times or more
Switching frequency (times/hour) : Maximum: 600
Maximum switching voltage (V) : AC250/DC150
Withstand voltage (V/min) : Between power supply voltage terminal and output contact: AC2000・1 / Between different polarity contacts of output relay: AC2000・1 / Between same polarity contacts of output relay: AC750・1 (GT3A-1, 2), AC1000・1 (GT3A-3)
Ambient humidity during use (%RH) : 35 to 85 (but no condensation)
Storage humidity (%RH) : -30 to 70 (but do not freeze)

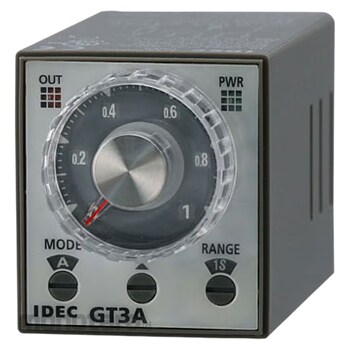

IDEC Multi-function Timer GT3 Series GT3A-2AF20 1pc
Rp989.900
Persediaan
Spesifikasi Produk
| Model Number | GT3A-2AF20 |
|---|---|
| Unit | 1pc |
| Product Type | Timer |
| Operating Voltage (V) | AC100-240 (50/60Hz) |
| Type | Multi-mode type (8-pin terminal) |
| Contact Configuration | Timed 1c + Instantaneous 1c |
| Output voltage (V) | AC240 3A, AC120/DC30 5A (resistive load) |
| format | GT3A-2 |
| Setting Method | Analog setting type |
| External Dimensions HxWxD (mm) | 40×36×72.2 |
| Insulation Resistance (MΩ) | Over 100 with DC500V megger |
| Counting Method | Ceramic oscillator oscillation counting method |
| Allowable Voltage Range (V) | Fluctuation range: AC85 to 264 (50/60Hz) |
| Recovery Time (ms) | 60 or less |
| Recovery Voltage | Rated voltage x 10% or more |
| Time Specifications (s to h) | 0.1 to 180 |
| External Protection Element | Fuse 250V/5A |
| Protective Structure Main Body | IP40 |
| Protective Structure Socket | IP20 (IEC60529) |
| Power Consumption (VA) | AC100V (60Hz): Approx. 2.5, AC200V (60Hz): Approx. 4.3 |
| Storage Temperature (°C) | 35 to 85 (but no condensation) |
| Ambient Temperature (°C) | -10 to 50 (but do not freeze) |
| Time Specifications (s to hour) | 0.1 to 180 |
| M Code | 60013861 |
| Berat (Kg) | 0.7 |
| Tanggal Produk Terdaftar | 11 December 2024 |
| Terakhir Diperbaharui | 24 November 2025 |
