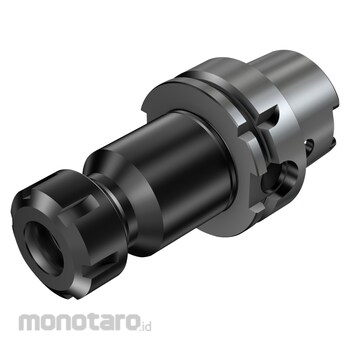

Sandvik HSK to ER Collet Chuck 392.41014-100 20 100 1pc

Name: Sandvik HSK to ER Collet Chuck 392.41014-100 20 100 1pc
Brand: Sandvik
SKU: S044006846
Price: 5499900 IDR
Availability: InStock

#Nomor SKU S044006846

Sandvik

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	392.41014-100 20 100
Unit	1pc
Connection - Machine Side (ADINTMS)	HSK -A -size 100
Connection - Workpiece Side (ADINTWS)	ER collet (DIN6499-B) -ER20
Coolant Entry Style (CNSC)	1: axial concentric entry
Coolant Exit Style (CXSC)	1: axial concentric exit
Coolant Pressure (CP) (bar)	80
Data Chip Pocket (DCP)	Yes
Data Chip Pocket Size (DCPS)	D10/H4,5
Connection Diameter (DCONMS) (mm)	100
Connection Diameter Workpiece Side (DCONWS) (mm)	21
Functional Diameter (DFCCSW) (mm)	20
Functional Diameter (DFCMCS) (mm)	75.013
Standard Number (STDNO)	ISO12164-1
Standard Letter (STDLET)	A
Kappa [z-Axis Root.] (KAP) (°)	0 (zero)
Functional length (LF) (mm)	88.5
Body diameter (BD1) (mm)	34
Body diameter (BD2) (mm)	100
Body length (LB1) (mm)	64.5
Body length (LB2) (mm)	100
Body half taper angle (BHTA1) (°)	0 (zero)
Body half taper angle (BHTA2) (°)	0 (zero)
Maximum Rotation Speed (rpm)	12500
Body Material (BMC)	Steel
Balancing Method Code (BLMC)	BD: balanced by design
Berat (Kg)	2.4
