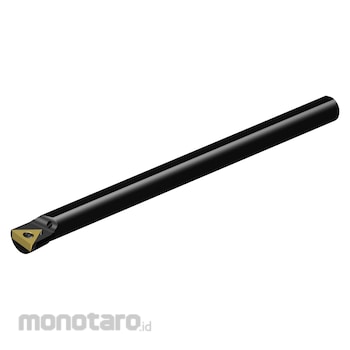

Sandvik CoroTurn 107 Boring Bar for Turning A06M-STFCR 2-B1 1pc

Name: Sandvik CoroTurn 107 Boring Bar for Turning A06M-STFCR 2-B1 1pc
Brand: Sandvik
SKU: S043996759
Price: 2399900 IDR
Availability: OutOfStock

#Nomor SKU S043996759

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A06M-STFCR 2-B1
Unit	1pc
Tool cutting edge angle (KAPR) (°)	91
Lead Angle (PSIR) (°)	-1
Clamping type code (MTP)	S: clamp with screw through hole
Insert Type (CUTINT_MASTER)	TCMT 110304
Connection - Machine Side (ADINTMS)	Cylindrical shank w/ 3 flats -inch: 3/8
Maximum ramping angle (RMPX) (°)	0 (zero)
Minimum bore diameter (DMIN1) (mm)	12.7
Workpiece side body angle (BAWS) (°)	0 (zero)
Machine side body angle (BAMS) (°)	0 (zero)
Minimum overhang (OHN) (mm)	14.2875
Maximum overhang (OHX) (mm)	38.1
Hand (HAND)	R
Coolant Entry Style (CNSC)	1: axial concentric entry
Coolant Exit Style (CXSC)	3: axial inclined exit
Coolant Pressure (CP) (bar)	40
Connection Diameter (DCONMS) (mm)	9.525
Shank height (H) (mm)	8.54
Functional length (LF) (mm)	152.4
Functional width (WF) (mm)	6.35
Functional height (HF) (mm)	0 (zero)
Body diameter (BD) (mm)	9.525
Orthogonal rake angle (GAMO) (°)	0 (zero)
Inclination angle (LAMS) (°)	-12.006
Torque (N m)	0.9
Body Material (BMC)	Steel
Master Insert Identification (MIID)	TCMT 11 03 04
Berat (Kg)	0.1
Tanggal Produk Terdaftar	19 September 2024
Terakhir Diperbaharui	27 May 2025
