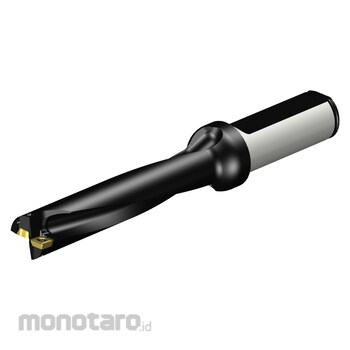

Sandvik CoroDrill 880 Indexable Insert Drill A880-D0656LX19-05 1pc

Name: Sandvik CoroDrill 880 Indexable Insert Drill A880-D0656LX19-05 1pc
Brand: Sandvik
SKU: S043979981
Price: 9999900 IDR
Availability: OutOfStock

#Nomor SKU S043979981

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A880-D0656LX19-05
Unit	1pc
Cutting diameter (DC) (mm)	16.6624
Achievable hole tolerance lower (TCHAL) (mm)	0 (zero)
Achievable hole tolerance upper (TCHAU) (mm)	0.4
Usable length (LU) (mm)	83.6169
Usable length diameter ratio (ULDR)	5.0183
Maximum adjustment limit (ADJLX) (mm)	0.6
Part 2 of Cutting Item Interface Identifiers (CUTINT_MASTERC1)	CoroDrill 880 -size 03-C (880-030305H-C-GM)
Part 2 of Cutting Item Interface Identifiers (CUTINT_MASTERP1)	CoroDrill 880 -size 03-P (880-0303W05H-P-GM)
Cutting Item Count (CICTC1)	1
Cutting Item Count (CICTP1)	1
Clamping type code (MTP)	S: clamp with screw through hole
Torque (N m)	0.9
Orthogonal rake angle (GAMO) (°)	5
Face Effective Cutt Edge Count (ZEFF)	1
Connection - Machine Side (ADINTMS)	Cylindrical shank (ISO9766 drill shank) -inch: 3/4
Coolant Entry Style (CNSC)	1: axial concentric entry
Coolant Pressure (CP) (bar)	10
Connection Diameter (DCONMS) (mm)	19.05
Tool cutting edge angle (KAPR) (°)	88
Point length (PL) (mm)	0.3049
Overall Length (mm)	151.244
Functional length (LF) (mm)	100.9395
Body length (LB) (mm)	86.6394
Maximum Rotation Speed (rpm)	13500
Berat (Kg)	0.2
Tanggal Produk Terdaftar	19 September 2024
Terakhir Diperbaharui	27 May 2025
