Extremely flexible. Excellent
shock absorption and torsion damping performance.
Simple structure for easy installation and removal.
No lubrication required, making maintenance easy and economical.

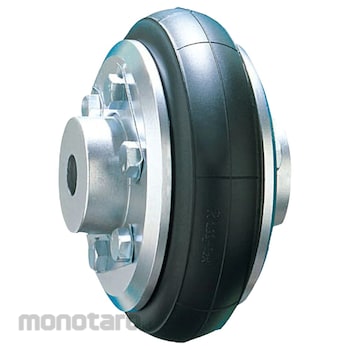

Nitta Chemical Loveflex Coupling RF Type RF-135 1pc
Rp4.899.900
Persediaan
Spesifikasi Produk
| Model Number | RF-135 |
|---|---|
| Unit | 1pc |
| Flange outer diameter Df(Φmm) | 108 |
| Overall Width L(mm) | 90 |
| Flange Length l(mm) | 35 |
| Neck Length L (mm) | (Volts) 20 |
| Flange spacing (mm) Z1 | 20 |
| Flange spacing (mm) Z2 | 14 |
| Flange spacing (mm) Z3 | 53 |
| Boss outer diameter (Φmm) Dn | 48 |
| Bolt pitch diameter (Φmm) B | 70 |
| Permitted Rotation Speed (rpm) | 4000 |
| Outer diameter (mm) Da | 135 |
| Shaft diameter (mm) min. d min | 16 |
| Shaft diameter (mm) Maximum d max | 30 |
| Voltage | 12 |
| Moment of inertia (N.cm² ) | 0.384 |
| Allowable torque T (N・m) | 78 |
| M Code | 2279542 |
| Berat (Kg) | 2.8 |
| Tanggal Produk Terdaftar | 31 July 2024 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Sample image (please check the specifications of each product number for details)
