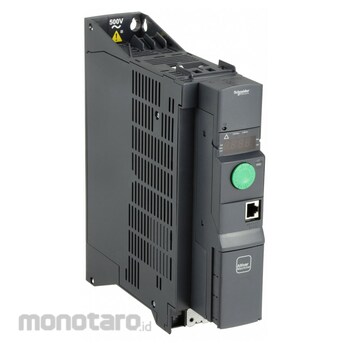

Schneider Electric Variable Frequency Drive ATV320U22N4B 500V AC, 3 hp Max Output Power 1unit

Name: Schneider Electric Variable Frequency Drive ATV320U22N4B 500V AC, 3 hp Max Output Power 1unit
Brand: Schneider Electric
SKU: S042576907
Price: 35999900 IDR
Availability: InStock

#Nomor SKU S042576907

Schneider Electric

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ATV320U22N4B
Unit	1unit
Adjustable Acceleration Time (s)	0 to 6,000
Adjustable Deceleration Time (s)	0 to 6,000
Country of Origin	Indonesia (subject to change)
Display Type	LED
Displays	Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Enclosure	Open
Enclosure Rating	NEMA 1
Input Frequency (Hz)	50/60
Input Phase AC	Three
Input Voltage (V)	500 AC
Manufacturer Part Number	ATV320U22N4B
Maximum Output Power (hp)	3
Output Frequency Range (Hz)	0.1 to 599
Output Phase AC	Three
Overall Height (inch)	12-3/4
Overall Width (inch)	2-3/8
Standards	EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274
Start/Stop Control	Programmable
UNSPSC	26111503
With Bypass / No Bypass	No Bypass
Application	Complex machines
Brake Chopper Included	Yes
Color	Black
Control Method	Keypad, Remote, Terminal, Network
Control Type	Keypad, Remote, Terminal, Network
Digital Readout	Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable
Dynamic Braking	No
Ethernet Port Included	No
Input Type	Analog; Discrete
Input Voltage Range (V)	323 to 550 AC
Key Pad Lockout	Yes
Maximum Output Current (A)	5.5
Number of Inputs	(3) Analog; (7) Discrete
Number of Outputs	(1) Analog; (3) Discrete
Output Type	Analog; Discrete
Output voltage (V)	500 AC
Output Voltage Range (V)	380 to 500 AC
Overall Depth (inch)	9-5/8
Protection	Input phase breaks: drive; Overcurrent between output phases and earth: drive; Overheating protection: drive; Short-circuit between motor phases: drive; Thermal protection: drive
Series	Altivar 320
Starting Torque	1.5
Style	Book
Sub Brand	Altivar(TM) 320 Machine Drive
Torque at 1 Hz	1.5
Torque Application	Constant Torque; Variable Torque
With Line Contactor / No Line Contactor	No Line Contactor
Berat (Kg)	2.7
Tanggal Produk Terdaftar	28 June 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Schneider Altivar ATV320 series VFDs have two formats: compact and book. Compact drives install into electrical cabinets or mount directly on the machine frame. Book drives have a slim profile and mount side by side with other devices to save space. These OEM drives are customizable to match the configuration of the original manufacturer and ensure consistent performance and proper installation. They are used with conveyors, carton packers, and woodworking equipment.
