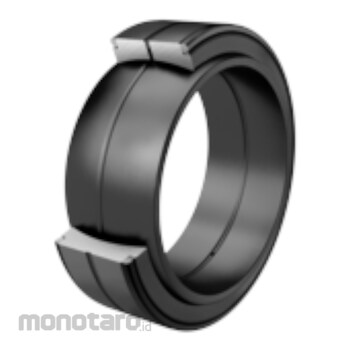

INA Spherical Plain Bearing GE Type GE480-DO 1pc

Name: INA Spherical Plain Bearing GE Type GE480-DO 1pc
Brand: INA
SKU: S042047933
Price: 429999900 IDR
Availability: OutOfStock

#Nomor SKU S042047933

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	GE480-DO
Unit	1pc
Bore Diameter Bearing (d) (mm)	480
Width Outer Ring C (mm)	195
Ball Diameter (dK) (mm)	565
Tilt Angle (α) (°)	3.8
Bore Diameter Bearing, Lower Tolerance (dUT) (mm)	-0.045
Outside Diameter, Lower Tolerance (DUT) (mm)	-0.075
Radial Clearance (Gr)	0.145 - 0.285
Width Inner Ring, Lower Tolerance (BUT) (mm)	-0.45
Width Outer Ring, Lower Tolerance (CUT) (mm)	-1.1
Minimum Operating Temperature (Tmin) (°C)	-60
Maximum Operating Temperature (Tmax) (°C)	200
Outside Diameter Bearing (D) (mm)	650
Width Inner Ring B (mm)	230
Basic Dynamic Load Rating, Radial (Cr) (N)	13800K
Basic Static Load Rating, Radial (C0r) (N)	53100K
Edge Spacing (r1smin) (mm)	2
Edge Spacing (r2smin) (mm)	5
Connection Measure Inner Ring (da max) (mm)	516
Housing Connection Diameter (Da min) (mm)	536
Berat (Kg)	235.6
Tanggal Produk Terdaftar	06 May 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Radial spherical plain bearing, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-1, dimension series C, open design

Warning

- The photo is only a reference (illustration) according to its function
- Product color refers to the product name and specifications listed on the website
- Products received will be in accordance with the information listed on the website.
