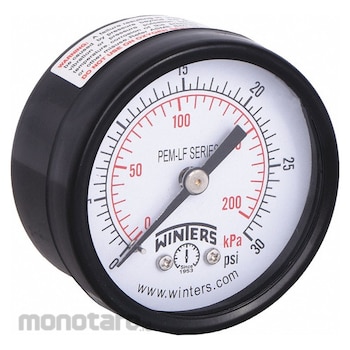

WINTERS Lead-Free Pressure Gauge for Drinking Water PEM1403LF 0 to 30 psi, 2 in Dial, J1387 2In 1pc
Rp139.900
Persediaan
Spesifikasi Produk
| Model Number | PEM1403LF |
|---|---|
| Unit | 1pc |
| UNSPSC | 23151820 |
| Accuracy | ±3-2-3% |
| Accuracy Grade | Grade B |
| Accuracy Scale | Mid-Scale |
| Ambient Operating Temperature Range (°C) | -40 to 65 |
| Operating Temperature Range Ambient (°F) | -40 to 150 |
| Application | Air Compressors; HVAC/R; Hydraulics; OEM Applications; Plumbing; Pneumatics; Water Pressure Testing |
| Bezel Material | Steel |
| Blowout Safety Back | No |
| Brand | WINTERS |
| Case Color | Black |
| Case Construction | Welded Joint |
| Case Depth (inch) | 1.079 |
| Case Diameter (inch) | 2-7/100 |
| Case Finish | Painted |
| Case Material | Steel |
| Cleaned for Oxygen Service | No |
| Compatible Process Media | Non-Clogging; Non-Corroding; Potable Water |
| Dial Color | White |
| Dial Face Material | Aluminium |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | None |
| Gauge Case Material | Steel |
| Gauge Wetted Parts | Brass / Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| IP/NEMA Rating | IP52 |
| Lens Material | Plastic |
| Lens Material - Gauge | Plastic |
| Liquid-Filled Case | No |
| Manufacturer Part Number | PEM1403LF |
| Mounting Type | Stem-Mount |
| Movement Material | Stainless Steel |
| Nominal Dial Size (inch) | 2 |
| Non-Sparking | No |
| Over-Pressure Limit | 25% of Full Scale |
| Panel Mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminium |
| Pressure Gauge Type | Lead-Free Pressure Gauge |
| Pressure Range (psi) | 0 to 30 |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 to 30 |
| Primary Scale Units | psi |
| Process Connection (inch) | 1/4 NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size (inch) | 1/4 in |
| Process Connection Type | NPT |
| Process Temperature Range (°F) | -40 to 150 |
| Removable Bezel | No |
| Scale Type | Dual |
| Secondary Pressure Range | 0 to 200 |
| Secondary Scale Units | kPa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Series | PEM-LF |
| Socket Material | Lead Free Brass |
| Standards | ANSI/ASME; CRN; NSF |
| Vibration Resistance | None |
| Wetted Parts Material | Lead Free Brass/Phosphor Bronze |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 05 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These general purpose gauges have brass/bronze wetted parts with low-lead compliant brass for use on applications involving drinking water. These dial pressure gauges are commonly used in potable water applications with minimal vibration or pulsation.
