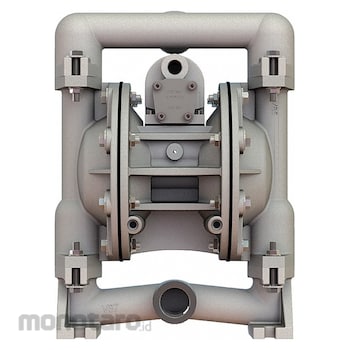

VERSA-MATIC Industrial Air-Operated Double Diaphragm Pump E1AA5T559CATEX Air, Aluminum DbldiapHPmp NPT PTFE/Aluminum 3/8 49gpm 1inch Size 1pc
Rp43.999.900
Persediaan
Spesifikasi Produk
| Model Number | E1AA5T559CATEX |
|---|---|
| Unit | 1pc |
| UNSPSC | 40151548 |
| Manufacturer Part Number | E1AA5T559C-ATEX |
| Power Source | Air |
| Housing Material | Aluminium |
| Diaphragm Material | PTFE |
| Valve Material | PTFE |
| Check Seat Material | Aluminium |
| Center Section Material | Aluminium |
| Pump Assembly Type | Bolt |
| Manifold Connection | Single Port |
| Fluid Intake Connection (inch) | 1 NPT |
| Fluid Discharge Connection (inch) | 1 NPT |
| Maximum Flow Rate (GPM) | 49 |
| Manifold Connection Type | NPT |
| Flow Rate @ 20psi (gpm) | 26.5 |
| Flow Rate @ 40psi (gpm) | 36.4 |
| Flow Rate @ 60psi (gpm) | 40.8 |
| Flow Rate @ 80psi (gpm) | 45.4 |
| Flow Rate @ 100psi (gpm) | 48.2 |
| Max. Discharge Pressure (psi) | 125 |
| Maximum Feet of Head (ft) | 320 |
| Max. Solid Dia. (inch) | 0.13 |
| Maximum Media Temperature (°F) | 220 |
| Chemical Compatibility | Alcohol; Ammonium Hydroxide; Antifreeze; Diesel; Diesel Exhaust Fluid; Gasoline; Kerosene; Oils; Water |
| Air Consumption (scfm) | 50 |
| Air inlet (inch) | 3/8 NPT |
| Rated Air Pressure (Psi) | 125 |
| Valve Type | Ball |
| Priming | Self-Priming |
| Duty cycle | Continuous |
| Media Intake Location | Bottom; Center |
| Media Discharge Location | Center; Top |
| For Use With Potable Systems | No |
| Overall Height (inch) | 14.5 |
| Overall Length (inch) | 9.1 |
| Overall Width (inch) | 10.8 |
| Standards | ATEX; EN ISO 80079-36: 2016; EN ISO 80079-37: 2016; EN60079-25: 2010 |
| Series Family | E1 |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Berat (Kg) | 13.3 |
| Tanggal Produk Terdaftar | 05 April 2024 |
| Terakhir Diperbaharui | 07 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Aluminum housing air-operated double diaphragm pumps are lightweight, mildly resistant to chemicals, and suited for applications that require the pump to be relocated often. They're used for dewatering in mining applications or for transferring oil, paint, and gas.
