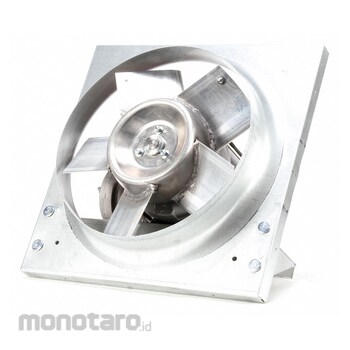

DAYTON Panel Exhaust Fans 10D996 Direct Drive, 12 in Blade Pnl Exhstfn 12In Bl Alum 208-230/460V 1pc

Name: DAYTON Panel Exhaust Fans 10D996 Direct Drive, 12 in Blade Pnl Exhstfn 12In Bl Alum 208-230/460V 1pc
Brand: DAYTON
SKU: S040679228
Price: 36999900 IDR
Availability: OutOfStock

#Nomor SKU S040679228

DAYTON

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	10D996
Unit	1pc
UNSPSC	40101502
Number of Speeds	1
Phase	3
Number of Blades	5
Blade Diameter (inch)	12
Speed Controllable	No
Motor Horsepower (HP)	1/4
Maximum Exhaust Airflow @ 0.375 in SP (cfm)	947
Includes Drive Package with Motor	Yes
Motor Speed (rpm)	1750
Maximum Exhaust Airflow @ 0.250 in SP (cfm)	1142
Max. Exhaust Airflow @ 0.125 in SP (cfm)	1262
Maximum Exhaust Airflow @ 0.000 in SP (cfm)	1347
Max. Noise Level @ 0.000 in SP @ 5 ft (sones)	13.4
Guard Type	None
Frame Material	Steel
Manufacturer Part Number	10D996
Motor Type	3-Phase
Ventilation Type	Exhaust
Motor Insulation	Class B
Method of Construction	Stamped
Blade Material	Aluminium
Assembled	Assembled
Nameplate Voltage (VAC)	208-230/460
Frame Finish	Zinc Plated
Drive Type	Direct Drive
Mounting Location	Ceiling; Wall
Mounting Orientation	Horizontal; Vertical
Motor Enclosure	Totally Enclosed Fan Cooled
Hazardous Location Class	Class I, Div 1, Group C and D; Class II, Div 1, Group F and G
Berat (Kg)	19.3
Tanggal Produk Terdaftar	02 April 2024
Terakhir Diperbaharui	30 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

These fans feature an explosion-proof motor and are rated for use in areas where combustible dust or certain flammable gases or vapors are present. Direct-drive panel exhaust fans have fewer moving parts and typically require less maintenance than belt-drive panel exhaust fans. Each fan features a motor that's directly mounted on the fan shaft, which reduces friction and improves efficiency compared to a belt-drive fan.
