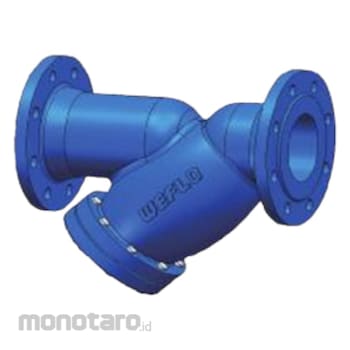

Weflo Y-Strainer 7101 DI Body PN 16 5inch 1pc

Name: Weflo Y-Strainer 7101 DI Body PN 16 5inch 1pc
Brand: Weflo
SKU: S039732767
Price: 5199900 IDR
Availability: InStock

#Nomor SKU S039732767

Weflo

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	7101
Unit	1pc
Size (inch)	5
Body Material	Ductile Iron
Cover Material	Ductile Iron
Screen Material	Stainless Steel
Gasket Material	Graphite
Plug Material	Grey Cast Iron
Corossion Protection	Fusion Bonded Coating or Liquid Epoxy Painted Interior and Exterior
Working Pressure (Bar)	16
Diameter Nominal	DN125
Dimension L (mm)	416
Dinmension H (mm)	332
Dimension Plug (inch)	1-1/4
Berat (Kg)	7.0
Tanggal Produk Terdaftar	02 February 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

* NPT or BSPT blowoff outlet on cover. Blowoff outlets are finished with plugs.
* Screens are perforated 304 stainless steel with spot welded seam.
* Recessed seat in body assures accurate screen alignment.
* Flanged and drilling complies with EN1092-2 PN16/25, ANSI B 16.1 Class125.
* Rated Working Pressure
Fig.7101: 16 bar / 200 psi for DN50 to DN600.
Fig.7102: 25 bar / 300 psi for DN50 to DN300.
* WRAS Approved:
Fig.7101 DN50-DN600
DI body, EPDM Gasket for potable water.
