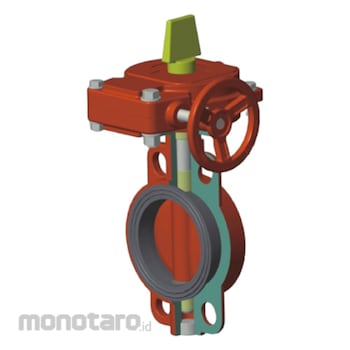

Weflo Butterfly Valve Class 300 FL ANSI150 F0811-300 2.5inch 1pc

Name: Weflo Butterfly Valve Class 300 FL ANSI150 F0811-300 2.5inch 1pc
Brand: Weflo
SKU: S039729453
Price: 3199900 IDR
Availability: OutOfStock

#Nomor SKU S039729453

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	F0811-300
Unit	1pc
Size (inch)	2.5
Working Pressure (psi)	300
Working Temperature (°C)	-10 to 82
Corossion Protection	Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
Diameter Nominal	DN65
Dimension A (inch)	4.
Dimension B (inch)	3.35
Dimension C (inch)	4.72
Dimension D (inch)	3.54
Dimension E (inch)	1.81
Dimension F (inch)	6.69
Dimension G (inch)	2.56
Dimension H (inch)	6.10
Dimension L (inch)	5.91
Dimension M (inch)	7.87
Body Material	Ductile Iron
Seat Material	Rubber
Disc Material	Ductile Iron
Shaft Material	Stainless Steel
Bushing Material	Brass
Berat (Kg)	3.0
Tanggal Produk Terdaftar	02 February 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- Relief valve: Limits inlet pressure by relieving excess pressure
- Pressure sustaining: Prevents inlet pressure from dropping below a predetermined minimum
- Operates over a wide flow range
- Inlet pressure is adjustable with single screw
- Quick opening and adjustable closing speed
- Can be maintained without removal from the pipe line
- Flanges to EN1092-2 PN10/PN16, ANSI B16.1 Class125.
- Grooved Ends to AWWA C606 Standard
- UL listed 1 1/2″-8″
