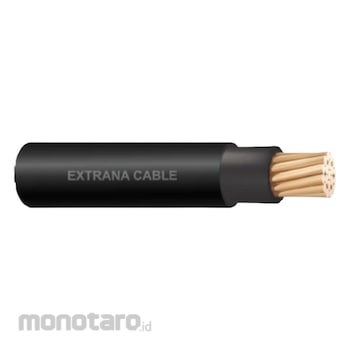

EXTRANA Building Wire Cable NYY (Per Meter Tanpa Putus) 1x150mm² 1m

Name: EXTRANA Building Wire Cable NYY (Per Meter Tanpa Putus) 1x150mm² 1m
Brand: EXTRANA
SKU: S039588791
Price: 229900 IDR
Availability: InStock

#Nomor SKU S039588791

EXTRANA

Wishlist

0 Ulasan

Spesifikasi Produk

Unit	1m
Core x Size (mm²)	1x150
Nominal Thickness Insulation (mm)	1.8
Nominal Thickness Sheath (mm)	1.7
Overall Diameter (mm)	22.2
Bending Radius (mm)	178
Maximum DC Conductor Resistance at 20°C (ohm/km)	0.124
Maximum AC Conductor Resistance at 70°C (ohm/km)	0.15
Maximum Current Carrying Capacity in Air (A)	'Circular : 442; Flat : 428 at 30°C
Inductance (mH/km)	0.313
Max. Short Circuit Current at 1sec (kA)	17.25
Maximum Current Carrying Capacity in Ground (A)	'Circular : 561; Flat : 402 at 30°C
Nominal Cross Section Area (mm²)	150
Number of Cores	1
Length (m)	1
Berat (Kg)	3.0
Tanggal Produk Terdaftar	26 January 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Copper Conductor, PVC Insulated, PVC Sheated

Peringatan

- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya
- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website

Use

Used as power cable for indoors, outdoors, cable trunking, and burried in the ground. Also used for power stations, industries and switchgear as well as for urban supply networks, where there is low exposure to mechanical damage.
