Sakagami Wiper Seal SCB Type 55x69x8/11mm 1pc

Name: Sakagami Wiper Seal SCB Type 55x69x8/11mm 1pc
Brand: Sakagami
SKU: S039554727
Price: 109900 IDR
Availability: OutOfStock

#Nomor SKU S039554727

Sakagami

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SCB
Unit	1pc
Material	NBR (RN807)
Maximum Speed (m/s)	1
Temperature Range (°C)	-30 to 100
Dimensions d (mm)	55
Dimension D (mm)	69
Dimension H (mm)	11
Dimension G (mm)	8
Dimension C (mm)	62
Dimension B (mm)	4
Dimension D1 (mm)	71.5±0.15
Dimensions m (mm)	1.1
Berat (Kg)	0.4
Tanggal Produk Terdaftar	17 January 2024
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

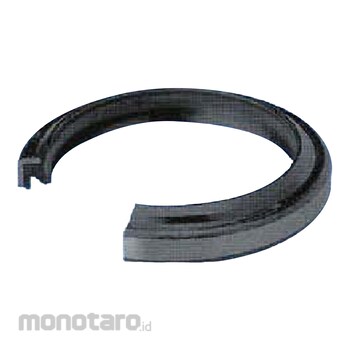

Metal jacket type of dust seals insertable into groove by press fitting.

Protecting packings and cylinders bypreventing the penetration of dust from the outside.

They are suitable to the conditions where protection from dust, mud, and rain is required.

Remarks
- Wipers should be installed in the direction specified in the above schematic.
- For the way of installation, check Installation Method.
- Refer to the ℓ dimension as it would be differed according to the type of packings to be used together.
- For ℓ(L) dimensions when using the dust seal alone, please refer to the SKY dimensions.
