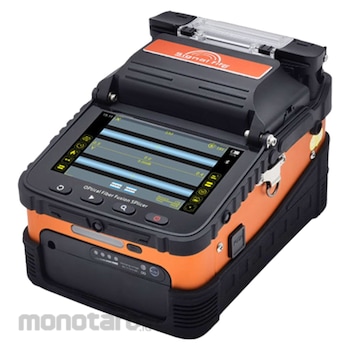

Signal Fire Signal Fire Fusion Splicer AI-6C 135x198x122mm 1unit

Name: Signal Fire Signal Fire Fusion Splicer AI-6C 135x198x122mm 1unit
Brand: Signal Fire
SKU: S039441997
Price: 17999900 IDR
Availability: InStock

#Nomor SKU S039441997

Signal Fire

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	AI-6C
Unit	1unit
Size (mm)	135x198x122
Fiber Alignment	Core/Cladding
Motor Number	6 Motors
Splicing Time (s)	8
Heating Mode (s)	18 (Can Be Customized According To The External Environment)
Fiber Type	Single-mode Fiber (SMF/G.652), BIF/G.657), Suitable For Single Mode, Multi-mode, Bare Fiber, Tail Fiber, Drop Cable, Jumper, Invisible Fiber Fusion
The Cladding Diameter (µm)	80-150
Splicing Loss (dB)	0.02 (SM), 0.01 (MM), 0.04 (DS/NZDS)
Splicing Mode	Automatic Focusing Core Alignment, Conventional/High Precision Welding
Splicing Way	Automatic, Semi-automatic
Fiber Holder	Three In One Fixture, No Need To Change, Suitable For Single/Multi-Mode, Multi-Core Cable/Bare Fiber, Tail Fiber, Jumper Fiber,Drop Cable
Battery Capacity (mAh)	5200 Large Capacity Lithium Battery
Battery charging Time	≤3.5 (It Can Continuously Weld And Heat About 160 Cores)
Magnification	300x (X or Y Axis Single Display), 150x (X and Y Axis Dual Display)
Fiber Diameter Coating Diameter (µm)	80-150/100-1000
Cutting Length Coating Layer 250μm Below (mm)	8-16
Cutting Length Coating Layer 250-1000μm (mm)	16
Heat Shrink Tube (mm)	60, 50, 40, 25
Tensile Strength (N)	Standard 2
Berat (Kg)	2.0
Tanggal Produk Terdaftar	04 December 2023
Terakhir Diperbaharui	27 May 2025
