JW3306E Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.
Using the macro bending technology on line for nondestructive testing, JW3306E can measure the signal direction and power and avoid misoperation resulting in interrupted lines.

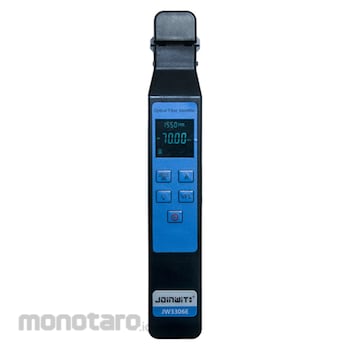

Joinwit Optical Fiber Identifier JW3306E 3in1 1unit
Rp2.999.900
Persediaan
Spesifikasi Produk
| Model Number | JW3306E |
|---|---|
| Unit | 1unit |
| Identified Wavelength Range (nm) | 750-1700 |
| Insertion loss (db) | 1 |
| Fiber Type (mm) | <3 Fiber |
| Identified Signal Frequency Type (Hz/kHz) | 270/1, 2 |
| Display Type | LED |
| Detector Type (mm) | 1 InGaAs |
| Minimum Detection Power (dBm) | -35 (1550nm), -30 (1310nm) |
| Wavelength Range (nm)*1 | 800-1600 |
| Detector Type | InGaAs |
| Measurement Range (dBm) | -50 to +26 |
| Photosurface (µm) | 300 |
| Uncertainty *3 (dB) | ±0.15 |
| Accuracy | Linear 0.1% or Nonlinear 0.01dBm |
| Operating Temperature (°C) | -10 to +60 |
| Storage Temperature (°C) | -25 to +70 |
| Auto-off Time (minute) | 10 |
| Operating Time (hour) | ‰¥130 |
| Center Wavelength (nm) | 650 |
| Output Power (mW) | 10 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 04 December 2023 |
| Terakhir Diperbaharui | 24 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- TFT color screen- Indicate the signal directions and power in fiber
- Indicate the signal presence or absence(Live or dark fiber)
- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning
- Displays the relative core power
- Don't need to replace adaptor
- Lower power indication
- Build in VFL function
- Build in OPM function
