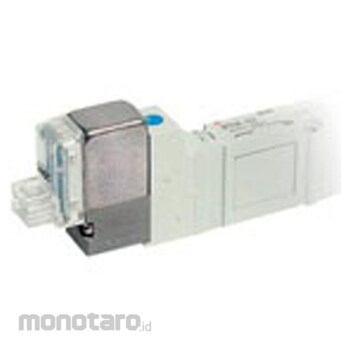

SMC 5-port Solenoid Valve SY75 Series SY7540-1MOZE 1pc

Name: SMC 5-port Solenoid Valve SY75 Series SY7540-1MOZE 1pc
Brand: SMC
SKU: S039265579
Price: 1999900 IDR
Availability: InStock

#Nomor SKU S039265579

SMC

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SY7540-1MOZE
Unit	1pc
Ambient and Flowing Fluid Temperature (°C)	-10 to 50 (no freezing)
Rated Voltage (V)	AC100 (50/60Hz)
Internal Pilot Valve Operating Pressure Range (MPa)	0.2 - 0.7
Lamp/Surge Voltage Protection Circuit	With lamp / surge voltage protection circuit
Lubrication	Unnecessary
Manual Operation Type	Push turn lock type hand operation type
Number of Ports	5
Pilot System	Internal pilot
Pipe Connection Diameter	No sub-plate
Suitable fluid	Air
Switching Method	3-position pressure center
Type of Lead Wire Extraction	M-shaped plug connector (without connector)
Type Of Thread	Rc
M Code	29320821
Berat (Kg)	0.8
Tanggal Produk Terdaftar	30 October 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

- Valve size can be reduced by increasing the flow rate.
Contribute to energy saving and space saving.
- Power consumption: 0.1W (with power saving circuit), 0.35W (standard)
- 200 million times (metal seal), 70 million times (elasticity seal)
- Compatible with plug -in subplate.
- Plug -in metal base (IP40)/plug -in -connector connection base (IP67)
- Manijud type: SS5Y3, SS5Y5, SS5Y7
