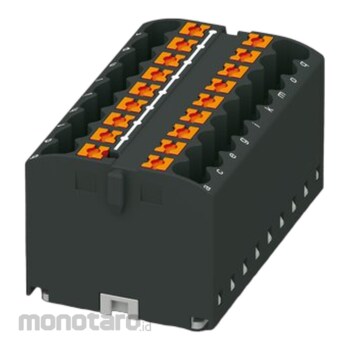

Phoenix Contact Distribution Block PTFIX 18X2,5 BK Black 1pack(8pcs)

Name: Phoenix Contact Distribution Block PTFIX 18X2,5 BK Black 1pack(8pcs)
Brand: Phoenix Contact
SKU: S038531279
Price: 1599900 IDR
Availability: OutOfStock

#Nomor SKU S038531279

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	PTFIX 18X2,5 BK
Unit	1pack(8pcs)
Product Type	Distributor terminal block
Operating Ambient Temperature (°C)	-60 to 105 (max. short-term operating temperature RTI Elec.)
Width (mm)	46.9
Flammability Rating According To Ul 94	V0
Color	Black
Height (mm)	28.6
Storage/Transport Ambient Temperature (°C)	-25 to 60 (for a short time, not exceeding 24 h, -60 to +70 )
Overvoltage Category	III
Degree of Pollution	3
Depth (mm)	21.7
Rated Surge Voltage (kV)	6
Ambient Temperature for Assembly (°C)	-5 to 70
Conductor Cross Section Flexible (mm²)	0.14 to 2.5
Insulating Material	PA
Permissible Humidity (Storage/Transport) (%)	30 to 70
Stripping Length (mm)	8 to 10
Maximum Power Dissipation for Nominal Condition (W)	0.77
Time of Exposure (s)	30
Test Duration per Axis (hour)	5
Shock Duration (ms)	18
Berat (Kg)	0.1
Tanggal Produk Terdaftar	27 September 2023
Terakhir Diperbaharui	27 June 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 24 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm2 - 4 mm2, mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Ketersediaan Barang

Pilih jenis produk yang diinginkan

Nomor SKU	Model Number	Masa Persiapan Barang	Harga	Jumlah
Loading...

Dokumentasi Produk

Datasheet_3273322
