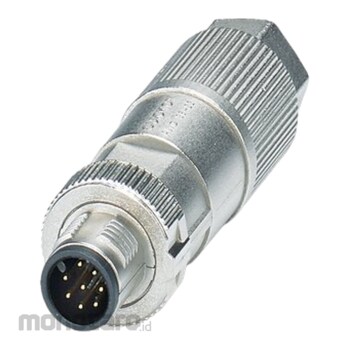

Phoenix Contact Connector SACC-M12MS-8QO-0,5 SH 1pc
Rp729.900
Persediaan
Spesifikasi Produk
| Model Number | SACC-M12MS-8QO-0,5 SH |
|---|---|
| Unit | 1pc |
| Product Type | Circular connector (cable-side) |
| Operating Ambient Temperature (°C) | -40 to 85 (Plug/ socket) |
| Flammability Rating According To Ul 94 | V0 |
| Length (mm) | 58 |
| Overvoltage Category | III |
| Degree of Pollution | 3 |
| Number of Positions | 8 |
| Insertion/Withdrawal Cycles | ≥ 100 |
| Rated Surge Voltage (kV) | 0.8 |
| Ambient Temperature for Assembly (°C) | -5 to 50 |
| Contact Material | CuSn |
| Seal Material | NBR |
| No. of Cable Outlets | 1 |
| Contact Surface Material | Ni/Au |
| Nominal Current IN (A) | 2 |
| Outside Diameter (mm) | 5 to 9.7 |
| Contact Carrier Material | PA 6.6 |
| Material for Screw Connection | Zinc die-cast, nickel-plated |
| Shielded | yes |
| Tightening Torque (N m) | 5 (Pressure nut) |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 27 September 2023 |
| Terakhir Diperbaharui | 27 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Connector, Universal, 8-position, halogen-free, shielded, Plug straight M12, A, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 5 mm ... 9.7 mm
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsDokumentasi Produk
