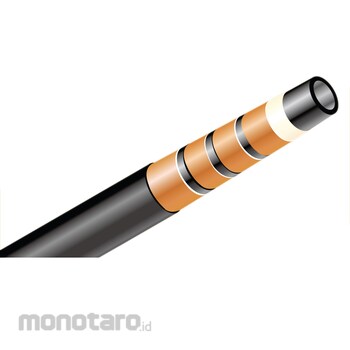

Bridgestone Hydraulic Hose (HQ35 Series) HQ-3508 R13/4 Kawat 1/2inch 1meter

Name: Bridgestone Hydraulic Hose (HQ35 Series) HQ-3508 R13/4 Kawat 1/2inch 1meter
Brand: Bridgestone
SKU: S038501418
Price: 269900 IDR
Availability: InStock

#Nomor SKU S038501418

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	HQ-3508
Unit	1meter
Inner Diameter (mm)	12.7
Outer Diameter (mm)	22.2
Maximum Working Pressure (MPa)	34.5
Minimum Bursting Pressure (MPa)	138
Minimum Bend Radius (mm)	120
Size (inch)	1/2
Reinforcement	4S
Compatible Fluid	Mineral Oil
Inner Tube	Oil Resistant Synthetic Rubber
Outer Cover	Abrasion Resistant Weather Resistant Synthetic Rubber
Temperature Range (°C)	Fluid:-40 to 100, Ambient: -40 to 70
Outer Diameter (inch)	0.87
Maximum Working Pressure (Psi)	5000
Min. Bursting Pressure (psi)	20000
Min. Bend Radius (inch)	4.72
Compatible Coupling/Relevant Page Factory-Assembled	UB/33
Compatible Coupling/Relevant Page UNICRIMP-Crimped	UB/33
Berat (Kg)	0.7
Tanggal Produk Terdaftar	26 September 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

- Compatible Fluid / Mineral Oil
- Inner Tube / Oil Resistant Synthetic Rubber
- Outer Cover / Abrasion Resistant Weather Resistant Synthetic Rubber
- Temperature Range : fluid / -40℃ to 100℃(-40℉ to 212℉)
- Temperature Range : ambient / -40℃ to 70℃(-40 ℉ to 158℉)
