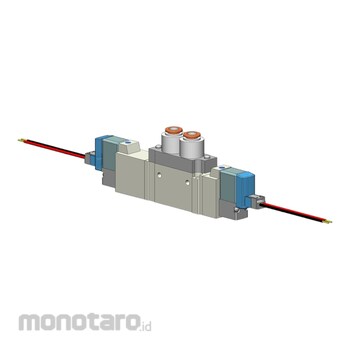

SMC Solenoid Valve (Katup Solenoid) SY5420-5LZ-C6 5 Port 1pc

Name: SMC Solenoid Valve (Katup Solenoid) SY5420-5LZ-C6 5 Port 1pc
Brand: SMC
SKU: S037465155
Price: 2099900 IDR
Availability: OutOfStock

#Nomor SKU S037465155

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SY5420-5LZ-C6
Unit	1pc
Rated Voltage (V DC)	24
Thread Type	Rc
Type of Actuation	3 Position Exhaust Center
Bracket	None
Series	SY5000
A/B Port Size	One-Touch Fitting For Φ6
Coil Specifications	Standard
Electrical Entry (mm)	L-Type Plug Connector With Lead Wire (Length 300)
Light/surge Voltage Suppressor	With Light/Surge Voltage Suppressor
Manual override	Push-Turn Locking Type
Made To Order	Standard
Berat (Kg)	0.8
Tanggal Produk Terdaftar	27 July 2023
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

SMC has improved product performance and reliability with the redesigned SY series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, Ozone resistance has been improved. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
