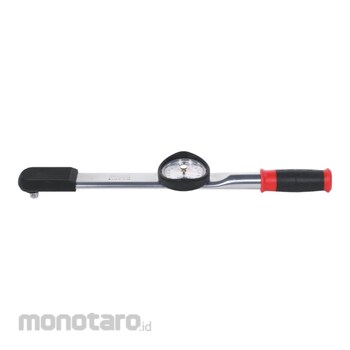

HOLEX Torque Wrench 655520 100 with Dial Gauge Display 100N·m 1unit

Name: HOLEX Torque Wrench 655520 100 with Dial Gauge Display 100N·m 1unit
Brand: HOLEX
SKU: S036709007
Price: 3399900 IDR
Availability: OutOfStock

#Nomor SKU S036709007

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	655520 100
Unit	1unit
Square Drive (inch)	1/2
Calibration	O3
Measurement Technology	Mechanical
Standard	DIN EN ISO 6789
Reversible Reading	Nm
Overall Length (mm)	380
Display	Analogue
Measurement Process	Torque
Maximum Torque (Nm)	100
Direction of Tightening	For Right and Left-hand Tightening
Torque Measuring Accuracy (%)	±4
Torque Range (N m)	20-100
Scale 1 Graduation (N m)	1
Release Signalling	Visual
Connection Format	Push-through square drive (ratchet)
Setting The Trigger Value	Memory Pointer
Feedback	Displaying
Lever Length without Plug-in Head [l1] (mm)	271
Material	Steel (Chrome-plated)
Berat (Kg)	0.6
Tanggal Produk Terdaftar	16 June 2023
Terakhir Diperbaharui	29 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Version:
One-armed; slim design with easily readable dial gauge. Body entirely of steel, chrome-plated with fixed square drive for plug-in heads.
Units of measure:
Nm
Function:
Actual torque can be read on the gauge whilst working; the final value is held by the memory pointer to be read later.
Standard:
Tested to DIN EN ISO 6789.
Cutting data:
Legend for drawing and formula:
l1 = Lever length without plug-in head l2 = Adjusted reference dimension on the torque wrench l3 = Lever length including factory calibration reference dimension l4 = Reference dimension of the plug-in head L = Total length of the tool T1 = Torque to be set T2 = Specified torque

Warning

The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.

Feature

Lever Length Including Factory Calibration Reference Dimension [l3] (mm) : 307

Use

For controlled single tightening of screws and for controlled measurements.
