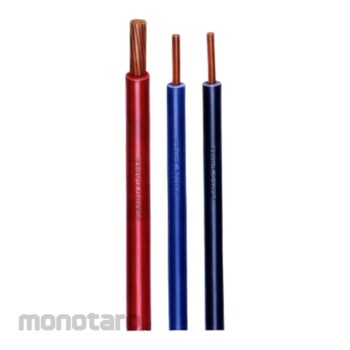

Jembo Thermoplastic Building Wire NYA Series Cable (Kabel) 4mm² 1roll(100m)

Name: Jembo Thermoplastic Building Wire NYA Series Cable (Kabel) 4mm² 1roll(100m)
Brand: Jembo
SKU: S036544684
Price: 819900 IDR
Availability: OutOfStock

#Nomor SKU S036544684

Wishlist

0 Ulasan

Spesifikasi Produk

Unit	1roll(100m)
Core x Size (mm²)	1x4
Length (m)	100
Conductor Nominal of Wire	7
Conductor Shape	rm
Conductor Diameter Approx (mm)	2.49
Thickness Insulation (mm)	1
Overall Diameter Of Cable Approx (mm)	4.6
Maximum Conductor DC Resistance 20°C (ohm/km)	4.61
Minimum Insulation Resistance at 20°C (MΩ/km)	50
Current Carrying Capacity In Pipe (A)	'25 at 30°C
Current Carrying Capacity in Air (A)	'43 at 30°C
Short Circuit Current at 1 s (kA)	0.44
AC Voltage Test (kV/5min)	2.5
Nominal Cross Section Area (mm²)	4
Number of Cores	1
SNI License	Yes
SNI Number	006.001.001.036.24
Berat (Kg)	4.5
Tanggal Produk Terdaftar	08 June 2023
Terakhir Diperbaharui	22 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Identification of cores :
- Green-Yellow
- Yellow
- Black
- Blue
- Red
Construction :
1. Copper Conductor
2. PVC Insulated
Symbol : NYA or CU/PVC
- Size Ranged : 1.5 s/d 400mm²
- Applicable Standard : Rated Voltage : 450/750 Volt
- Specification : SPLN 42-1 : 1991, SNI 04-6629.3.2006, IEC 60227-3 IEC 01

Warning

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Feature

Heat Resistance

Use

- Permanent Instalation
- In conduit or exposed wiring
- In dry location
