Zkteco Panel Kontrol Akses Atlas200 2 Door 1pc

Name: Zkteco Panel Kontrol Akses Atlas200 2 Door 1pc
Brand: Zkteco
SKU: S036216895
Price: 4899900 IDR
Availability: OutOfStock

#Nomor SKU S036216895

Zkteco

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	Atlas200
Unit	1pc
User Capacity	5000
Number of Doors Controlled	Two Doors
Number of Readers Supported	Atlas-200: 4 (Wiegand or OSDP Readers)
Types of Readers Supported	ZKTeco KR Series readers and 3rd party 125kHz & 13.56MHz Wiegand, OSDP and RS-485 readers
Number of Inputs	Atlas-200: 5 (2 Exit Buttons, 2 Door Sensors, 1 Aux)
Number of Outputs	Atlas-200: 3 (2 Form C relays for locks and 1 Form C relay for Aux output)
Power Supply (V)	12 DC, 3A (PoE)
Operating Temperature (°C)	0 to 45
Browsers Supported	Chrome, Firefox, Edge
Enclosure	Powder Coated Aluminium
Mounting	Wall Mount
Dimensions (Bundle Only) (LxWxH) (mm)	380x80x280
Dimensions (Board Only) (mm)	197x171
Events Database Capacity	10000 transactions plus unlimited archive downloads
Humidity (%RH)	20 to 80
Communication Interface	TCP/IP, Wi-Fi, Wiegand, OSDP
Berat (Kg)	0.8
Tanggal Produk Terdaftar	24 May 2023
Terakhir Diperbaharui	07 August 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

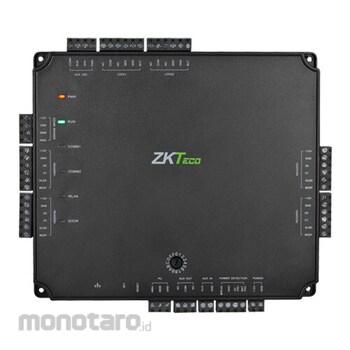

The Atlas200 RFID Access Controller is a two-door controller from the Atlas series, these are the most advanced contactless access control panels for 1, 2 and 4 doors control and a built-in web application, which eliminates the need to install any software on a desktop computer. The Atlas series supports any third party reader that works with Wiegand, RS485 or OSDP communication protocols.

Advanced access control features
No software installation required on a desktop computer. The built-in web application provides advanced access control functions, including user registration and management, door control and management, locking, reporting, room map, anti-passback, unlock card opening, group opening, card design and duress PIN codes.

Door Control and More
User-programmable auxiliary relays can be used to control lights, alarms, intrusion detection panels, additional locking devices, or any other external electrical device that can be controlled by a switch.

Capacity
The Atlas series web application supports up to 84 doors. Each panel in the Atlas series can store up to 5,000 users (cards) and up to 10,000 events.

Selecting Readers
The Atlas 400 contactless controller supports ZKTeco KR series contactless card readers. Atlas additionally supports any third party reader that supports Wiegand or OSDP communication protocols.

Mobile App
Remote door unlock, lock and restore, access to events and alarms, add/edit users and more.

Lowest Total Cost of Ownership
The Atlas Series is available in several designs to meet different project needs and reduce the total cost of ownership of an access control system. An easy-to-use built-in web application lets you get started quickly. The firmware can be updated to the latest version to keep your system up to date with the latest features and security enhancements.

Management
System management through any browser from client PCs. There is no need to install software on each client.

Easy to set up
Programming of special logic between doors is done using simple drop-down menus. No special scripts or code required.

Built-in application
Control software allows you to display the status of the doors in real time and remotely control the opening / closing of the door, report emergency conditions.

Advanced Features
Advanced access control features are built into the controller itself, including anti-passback, multi-user authentication, and duress access.
