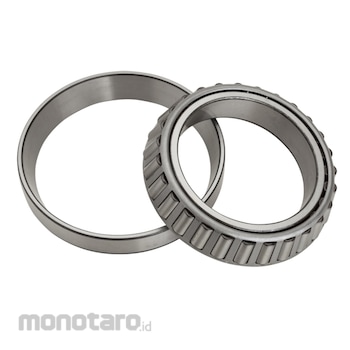

NTN Tapered Roller Bearing 529/522 1set
Rp289.900
Persediaan
Spesifikasi Produk
| Model Number | 529/522 |
|---|---|
| Unit | 1set |
| Diameter (D) (mm) | 101.6 |
| Dimension Wo (inch) | 1.0625 (26.988mm) |
| Dimension Wi (inch) | 1.4200 (36.068mm) |
| Dimension W (inch) | 1.3750 (34.925mm) |
| Bore Type | Round |
| Configuration | One |
| Material | Case Carburized Steel |
| Style | Cone & Cup |
| Precision Rating | Class 4 |
| Cone Number | 529 |
| Cup Number | 522 |
| Type | Tapered Roller Bearing |
| Dimension B (inch) | 20 (50.8mm) |
| Dimensions r (inch) | 0.1300 (3.3mm) |
| Dimension a (Effective Load Center) (inch) | -0.5000 (-12.7mm) |
| Dimension U (inch) | 2.32 (59.0mm) |
| Dimension V (inch) | 2.28 (58.0mm) |
| Dimension X (inch) | 3.74 (95.0mm) |
| Dimension Z (inch) | 3.50 (89.0mm) |
| Berat (Kg) | 0.6 |
| Tanggal Produk Terdaftar | 07 December 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Since it employs tapered rollers, bearing is durable against load in the axial direction and its load capacity is also great.
Use
- For thrust/radial load application.
