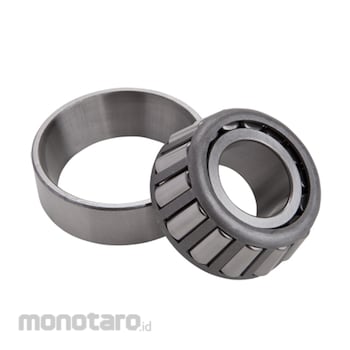

NTN Tapered Roller Bearing 30220 1set
Rp999.900
Persediaan
Spesifikasi Produk
| Model Number | 30220 |
|---|---|
| Unit | 1set |
| Precision Rating | Class 0 |
| Diameter (D) (mm) | 180 |
| Dimension a (Effective Load Center) (inch) | -0.0394 (-1mm) |
| Limiting Speed-Oil (rpm) | 2700 |
| Bore Type | Round |
| Limiting Speed-Grease (rpm) | 2000 |
| Dimension (da min) (inch) | 6.18 (157.0mm) |
| Material | Through Hardened Steel |
| Dimension C (inch) | 1.1417 (29mm) |
| Style | Cone & Cup |
| Type | Tapered Roller Bearing |
| Dimension B (inch) | 1.3386 (34mm) |
| Dimensions r (inch) | 0.10 (2.5mm) |
| Dimension T (inch) | 1.4567 (37mm) |
| Dimensions da (inch) | 4.49 (114.0mm) |
| Dimensions db (inch) | 4.57 (116.0mm) |
| Berat (Kg) | 3.7 |
| Tanggal Produk Terdaftar | 07 December 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Since it employs tapered rollers, bearing is durable against load in the axial direction and its load capacity is also great.
Use
- For thrust/radial load application.
