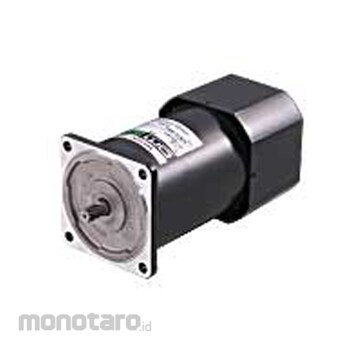

Orientalmotor Motor with Electromagnetic Brake K Series 5IK90GU-SMF2 1pc

Name: Orientalmotor Motor with Electromagnetic Brake K Series 5IK90GU-SMF2 1pc
Brand: Orientalmotor
SKU: S034551448
Price: 5199900 IDR
Availability: InStock

#Nomor SKU S034551448

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	5IK90GU-SMF2
Unit	1pc
Mounting Angle Dimension (mm)	90
Electromagnetic Brake	Yes
Output Power (W)	90
Starting Torque (Motor Shaft) (mN.m)	Three-phase 200V/50Hz: 850; Three-phase 200V/60Hz: 700
Rated Torque/Rated Speed (Motor Shaft) (mN.m/(rpm))	Three-phase 200V/50Hz: 680/1300; Three-phase 200V/60Hz: 570/1550
Allowable Torque Of Gearhead Output Shaft	It depends on the combined gearhead.
Allowable Moment of Inertia J	It depends on the combined gearhead.
Shaft/Gear Type	Toothed shaft
Time Rating	Continue
Direction of Rotation	It depends on the combined gearhead.
Electromagnetic Brake Part Model	Non-excitation actuation type
Electromagnetic Brake (V/Hz/A/W)	Single phase 200/50/0.07/10; Single phase 200/60/0.07/10;
Voltage/Frequency/Current (V/Hz/A)	Three-phase 200/50/0.8; Three-phase 200/60/0.8
Electromagnetic Brake Static Friction Torque (Motor Shaft) (mN.m)	500
Rotation Speed When Gearhead Is Attached	It depends on the combined gearhead.
Berat (Kg)	4.7
Tanggal Produk Terdaftar	07 November 2022
Terakhir Diperbaharui	27 May 2025
