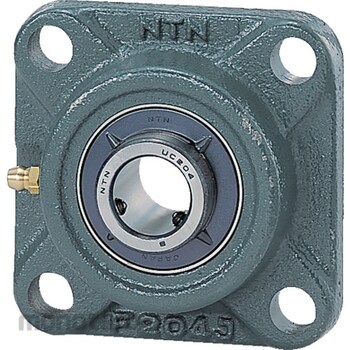

NTN Flanged Unit Cast Housing Set Screw Type UCF212-204D1 1pc
Rp669.900
Persediaan
Spesifikasi Produk
| Model Number | UCF212-204D1 |
|---|---|
| Unit | 1pc |
| Finishing Material | Bearing: High carbon chromium steel bearing, Bearing Housing: Cast Iron |
| Mounting Pitch (inch) | 5-5/8 |
| Mounting Screw | 5/8 |
| Shaft Diameter (inch) | 2-1/4 |
| Total Height (inch) | 6-7/8 |
| Bearing Type | UC |
| Housing Type | Square Flange |
| Lubrication | Relubricatable type |
| Dimension A (inch) | 1-7/8 |
| Dimension A0 (inch) | 2-45/64 |
| Dimension A1 (inch) | 23/32 |
| Dimension A2 (inch) | 1-9/64 |
| Dimension N (inch) | 3/4 |
| Dimension B (inch) | 2.5630 |
| Dimensions s (inch) | 1.000 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 20 July 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- The shape of the bearing housing is square and it is designed to be attached such as to the side wall of the machine by 4 bolts, also the structure around the bearing is simple and easy to install, so it is most widely used in the flange type.Use
For transmission devices and general machinery.Ketentuan dan Kondisi Barang
