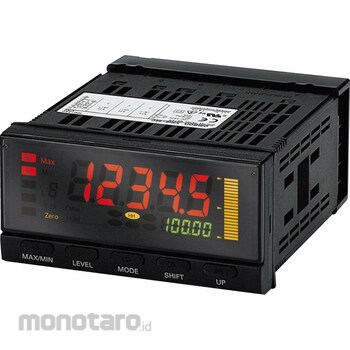

OMRON Load Cell Mv Meter K3HB-V K3HB-VLC-L1BT11-AC/DC24 1pc
Rp14.999.900
Persediaan
Spesifikasi Produk
| Model Number | K3HB-VLC-L1BT11-AC/DC24 |
|---|---|
| Unit | 1pc |
| Protection Class | Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100) |
| Ambient Relative Humidity (RH) | 25 to 85 |
| Type of Display | Negative type LCD (backlight LED) display |
| Included Accessories | Waterproof packing, 2 fixtures, terminal cover, unit seal, instruction manual |
| Character Height (mm) | PV: 14.2 (Green/Red switching), SV: 4.9 (Green) |
| Storage Temperature Range (°C) | -25 to +65 (with no icing or condensation) |
| Type of Input | Load cell |
| Power Consumption | 11VA/7W or less (at maximum load) |
| Type of Sign | Panel mounting |
| Protective Function | Memory: EEPROM (nonvolatile memory) (100,000 writes) |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC megger) Between all external terminals and case |
| Sampling Cycle (ms) | 20 |
| Power Supply Voltage (V) | AC/DC24 |
| Altitude (m) | 2000 or less |
| Digit Number of Display | 5-digit |
| Display Range | -19999 to 99999 |
| Conversion System | Delta Sigma method |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| M Code | 46660923 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 June 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Measures pressure, load, torque, weight, etc. in response to load cell signal input, and is the best indicator for pass / fail judgment of automatic machines and sorters
Warning
When the DC power type is turned on, it has a control power capacity of about 1A per unit I need it. Be especially careful when using multiple units. An optional BCD output cable (sold separately) is required for output type BCD.
