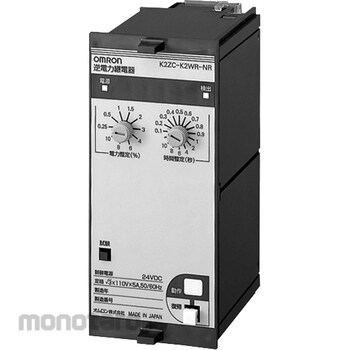

OMRON Distributed Power Supply Support Composite Relay For Grid Interconnection K2ZC-N K2ZC-K2WR-NR 1pc
Rp12.999.900
Persediaan
Spesifikasi Produk
| Model Number | K2ZC-K2WR-NR |
|---|---|
| Unit | 1pc |
| Rated Frequency (Hz) | 50/60 (shared) |
| Current Consumption (mA) | 130 |
| Impact Resistance Durability (m/s²) | Acceleration 300 3 directions 3 times each |
| Rated Voltage (V) | AC110 |
| Power Consumption (V/A) | (Input circuit rated value) 0.5 (at 5 A), 0.5 (at 110 V) |
| Standard | JEC 2500 compliant |
| Vibration Resistance (Malfunction) | Vibration frequency 10Hz, double amplitude 5mm (back and forth, left and right) 2.5mm (up and down) 30s in each direction, frequency 16.7Hz, double amplitude 0.4mm (front and back, left and right, up and down) 600s each direction |
| Rated Current (A) | AC5 |
| Insulation Resistance (MΩ) | 100 or more between electrical circuit and outer box, 100 or more between electrical circuits |
| Influence of Temperature | Reverse power: ± 20% |
| Ambient Relative Humidity (RH) | 30 to 80 |
| Frequency Fluctuation Range (Hz) | ± 1 with respect to the rated frequency |
| Withstand Voltage | Between withstand voltage electric circuit and outer box: 2000V 1min, Between electric circuits: 2000V 1min |
| Operating Time | (Setting range) 0.1-0.2-0.3-0.4-0.5-0.6-0.7-0.8-0.9-1-2-4-6-8-10s |
| Type | Reverse power relay (for three-phase balanced load) |
| Output Contact | Trip relay: 1c, Alarm relay: 1a |
| Overload Withstand | Voltage input: 126.5V 3h once, 137.5V 10s once Current input: 200A 1s twice |
| Purpose | Reverse power flow prevention |
| Operating Ambient Temperature (°C) | -20 to +60 (no icing) |
| M Code | 39076116 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 27 June 2022 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Peringatan
PERHATIAN: Produk ini dirancang untuk tegangan 100/110/120V (Produk Impor). Penggunaan dengan tegangan yang berbeda dapat mengakibatkan kerusakan atau bahaya, karena tegangan listrik yang umum dipakai di Indonesia adalah 220V.
