Pursuing ease of wiring / adjustment.

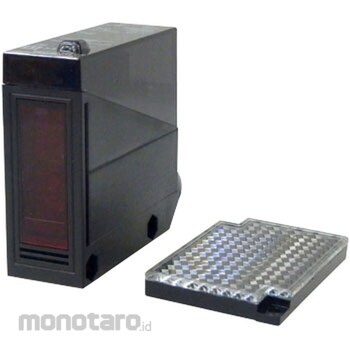

OMRON AC/DC Power Free Type Photoelectric Switch E3JM-R4M4 Red 1pc
Rp1.999.900
Persediaan
Spesifikasi Produk
| Model Number | E3JM-R4M4 |
|---|---|
| Unit | 1pc |
| Protection Class | IEC standard IP66 |
| Output | Relay |
| Ambient Temperature (°C) | Operating: -25 to +55 Storage: -30 to +70 (no freezing or condensation) |
| Shock Resistance (m/s²) | 500 X, Y, Z directions 3 times |
| Ambient Illuminance (lx) | Light receiving surface illuminance Incandescent lamp: 3000 or less |
| Light Source (Light Emission Wavelength) | Red light emitting diode (660nm) |
| Directional Angle (°) | 1-5 |
| Head Shape | corner |
| Light Color | Red |
| Detection Distance (mm) | 4000 (when using E39-R1) |
| Response Time (ms) | Operation and reset: 30 or less for each |
| Lifespan | Relay output: Mechanical over 50 million times (opening/closing frequency 18,000 times/hour), electrical over 100,000 times (opening/closing frequency 1800 times/hour) |
| Power Supply Voltage (V) | DC12 to 240 ± 10% Ripple (pp) 10% or less, AC24 to 240 ± 10% 50/60Hz |
| Standard Detection Object (mm) | Opaque body of Φ75 or more |
| Accessories | Mounting bracket (with screws), nut, terminal protection cover, cord mounting nut set, reflector |
| Ambient Illumination to Use (Lx) | Operating: 45 to 85, Storage: 35 to 95 (no condensation) |
| Connection Method | terminal block type |
| Control Output | 1c contact AC250V 3A (cosΦ=1) or less, DC5V 10mA or more Light ON/Dark ON Switch changeover type |
| Detection Method | Retroreflective type (with MSR function) |
| Detection Target | opaque body |
| Impact Durability (m/s²) | 2 |
| Insulation Resistance (MΩ) | 20 or more (at DC500V megger) |
| Case Material | ABS |
| Cover Material | polycarbonate |
| Material (Lens) | methacrylic resin |
| Material (Mounting Bracket) | iron |
| Power Consumption (mW) | DC/2000 or less, AC/2000 or less |
| Shock Malfunction (m/s²) | 2 |
| Type | Built-in power supply |
| Vibration Resistance (Durability) | 10 to 55Hz, double amplitude 1.5mm, 2h each in X, Y, and Z directions |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm, 2h each in X, Y, and Z directions |
| Withstand Voltage (V) | AC2000 50/60Hz 1min |
| M Code | 08585683 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 27 June 2022 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Timers cannot be disabled for sensors with timer function (E3JM- 4T).Feature
Pursuing ease of wiring/adjustment.
