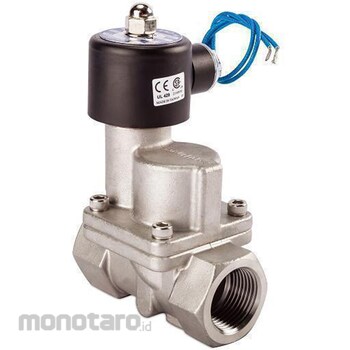

Uni-D Solenoid Valve AC 220V (60/50Hz) SUS-15 1pc

Name: Uni-D Solenoid Valve AC 220V (60/50Hz) SUS-15 1pc
Brand: Uni-D
SKU: S031967464
Price: 5199900 IDR
Availability: OutOfStock

#Nomor SKU S031967464

Uni-D

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	SUS-15
Unit	1pc
Pipe Size (inch)	1/2
CV	4
Orifice (mm)	17
Fluid Temperature (°C)	-5 to 185
Dimensions (mm)	84x115x48
Berat (Kg)	1.0
Tanggal Produk Terdaftar	17 June 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

- SUS-NO series is multiplex, pilot operated piston, conductive and normally closed (NC) 2/2 way solenoid valve.
- Availability of fluid type：water, air, steam, light oil
- Specially suitable for frequent operation

Feature

- Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
- To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
- AC voltage tolerance：±10%；DC voltage tolerance：±1%
- It should be installed horizontally；vertical installation is not advisable.
Not Suitalbe For Fluid As Below：
- Liquid status when it is high temperature；solid status when it is cool.
- Corrosive fluid
- Viscosity over 20cst
