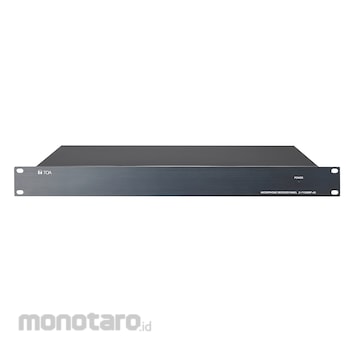

TOA Microphone Receiver Panel Z-FV200RF-AS 1unit
Rp8.399.900
Persediaan
Spesifikasi Produk
| Model Number | Z-FV200RF-AS |
|---|---|
| Unit | 1unit |
| LED Indicator | Power (Green), Error (Red) |
| No. of Zone Groups in Speaker Selector | Max. 10 (Z-SS2010, Z-SS-1010R) |
| Priority Control for Remote Microphone | Last-in-1st-out priority / 1st-in-1st-out priority / individual priority / selectable |
| Control Input | All call :1 input,No-voltage make contact input,open voltage 24V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) |
| Chime | Ascending 4-note tone |
| No. of Connectable to Remote Microphone | Max. 4 x RM-200M |
| Accessories | Removable terminal plug (2 pins) x 2, removable terminal plug (3 pins) x 1, removable terminal plug (6 pins) x 10, Instruction Manual x 1 |
| Max. Cable Distance (m) | Total 800 |
| Operating Temperature (°C) | 0 to +40 |
| Dimensions (WxHxD) (mm) | 482x44x320 |
| Power Source | Usable Power Supply Unit: FV-200PS; 24 V DC (operating range: 19.5 - 27 V), M3 screw terminal |
| Finish | Front Panel : Aluminium, Black, Alumite |
| Distortion | Under 1% (1 kHz, rated output) |
| SN Ratio (dB) | Over 60 |
| Current Consumption (mA) | 230 |
| Control Output | SS Control : 55 outputs, open collector output, removable terminal block (6 pins) |
| Operating Humidity (%RH) | Under 90 (no condensation) |
| Berat (Kg) | 2.8 |
| Tanggal Produk Terdaftar | 27 April 2022 |
| Terakhir Diperbaharui | 07 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Z-FV200RF-AS Microphone Receiver Panel is used to connect the RM-200M Remote Microphone to the Z-FV200 Series Emergency Public Address System. Up to 4 RM-200M can be connected.
Feature
RF Link - Audio Output :0 dB, unbalanced, removable terminal block (2 pins)
RM Link - Usable Remote Microphone :
RM-200M Remote microphone extention unit : RM-210 (Max. 4 units)
