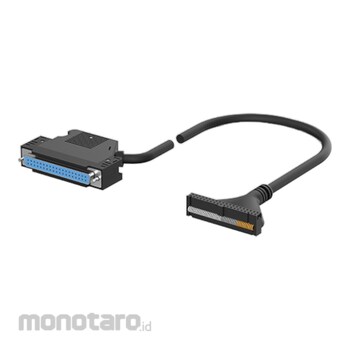

Autonics I/O Terminal Block Cables CH40-FP010-E1T4R 1pc
Rp499.900
Persediaan
Spesifikasi Produk
| Model Number | CH40-FP010-E1T4R |
|---|---|
| Unit | 1pc |
| Connector for PLC | Fujitu socket 40pin |
| Connector for Terminal Block | Hirose socket 20pin/40pin/50pin |
| Conductor Characteristics (mm) | 7/0.127 (AWG 28)x20P, 7/0.127 (AWG 28)x10P, 7/0.127 (AWG28)x25P |
| Insulation Diameter (mm²) | 0.12 |
| Cable Diameter (mm) | Ø7.2 (40C)/8.9 (50C) |
| Current Range (A) | Max. 1 |
| Conductor Resistance (ohm/m) | ≤0.223 |
| Insulation Voltage (V/Hz) | 500 AC-50/60 for 1min. |
| Insulation Resistance (MΩ/km) | ≥15 |
| Environment Temperature Level (°C) | -15 to 55, enclosed space: -25 to 65 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Cables Used | UL 20276 TWIST 20C/40C/50C |
| Number of Connector Pins | 40 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The CH/CO series I/O Terminal Block Cables are compatible with PLCs and controllers from various brands (Autonics, LSIS, Mitsubishi, etc). The CH/CO series cables are available in various configurations by connector type, connector direction, number of pins, cable length, and more, allowing application in diverse working environments.
