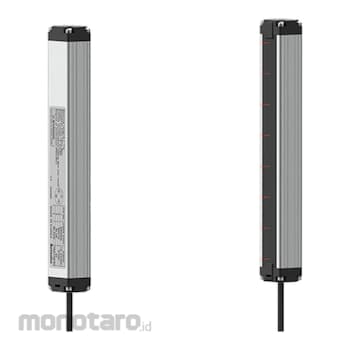

Autonics Area Sensor Standard Type BW Series BW20-48P 1pc
Rp16.999.900
Persediaan
Spesifikasi Produk
| Model Number | BW20-48P |
|---|---|
| Unit | 1pc |
| Detection Type | Through Beam Type (Direct beam) |
| Operation Mode | Light ON |
| Certification | CE |
| Power Supply (V) | 12-24 DC ±10% (ripple P-P: Max. 10%) |
| Control Output | PNP open collector |
| Detection Distance (m) | 0.1-7.0 |
| Response Time (ms) | Max. 10 |
| Connection Type | Connector Cable type (Ø5, 300mm, M12) |
| Environmental Light Level (lx) | Sunlight: Max. 10000 (light receiver) |
| Environment Temperature Level (°C) | -10 to 55, enclosed space: -20 to 60 |
| Protection Level | IP65 |
| Humidity Level | 35-85%RH, enclosed space: 35-85%RH |
| Material | Case: Aluminium, Front Cover, Sensing Part: Acrylic |
| Min. target sensing (mm) | opaque material min. Ø30 |
| Optical Axis Pitch (mm) | 20 |
| Number of Optical Axes | 48 |
| Sensing Length/Total Length (mm) | 940/960 |
| Cable Spesification | Ø5mm, 4-wire, 300mm, konektor M12 |
| Accessories | Bracket A:4, Bracket B: 4, Fastening Bolt:8 |
| Light Source | Infrared LED (850 nm modulated) |
| Berat (Kg) | 2.1 |
| Tanggal Produk Terdaftar | 18 April 2022 |
| Terakhir Diperbaharui | 07 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The BW series general purpose area sensors feature long sensing distance up to 7 m and are available in 22 different configurations based on the number of optics, optical pitch, and detection area size. With ambient illuminance limit of 100,000 lux, the sensors can minimize operation errors under direct sunlight. Bright LED indicators are present in both the emitter and the receiver, making it easy to identify the operation status. Mutual interference prevention is possible with master/slave connection method, allowing multiple units to be installed in a row.
Warning
The weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
