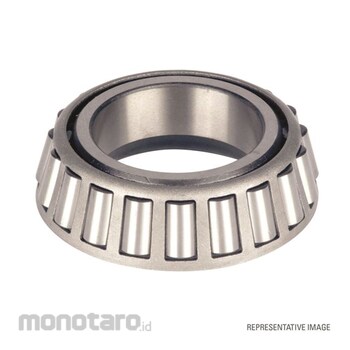

TIMKEN Tapered Roller Bearings Single Cones 29590 1pc

Name: TIMKEN Tapered Roller Bearings Single Cones 29590 1pc
Brand: TIMKEN
SKU: S030925823
Price: 1399900 IDR
Availability: OutOfStock

#Nomor SKU S030925823

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	29590
Unit	1pc
Design Unit	Imperial
da - Cone Frontface Backing Diameter (mm)	73
db - Cone Backface Backing Diameter (mm)	80
Ab - Cage-Cone Frontface Clearance (mm)	2
a - Effective Center Location (mm)	-0.8
C90 - Dynamic Radial Rating (90 million revolutions) (N)	33800
C0 - Static Radial Rating (N)	161000
Ca90 - Dynamic Thrust Rating (90 million revolutions) (N)	26600
Aa - Cage-Cone Backface Clearance (mm)	1.8
Cage Type	Stamped Steel
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) (N)	227000
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) (N)	58900
d - Cone Bore (mm)	66.675
B - Cone Width (mm)	25.4
R-Cone Backface To Clear Radius (mm)	3.6
Berat (Kg)	0.4
Tanggal Produk Terdaftar	25 February 2022
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Warning

- Please confirm the size information and other product details on Attribute Information then place an order.
- Image on this page only as Representative Image.
