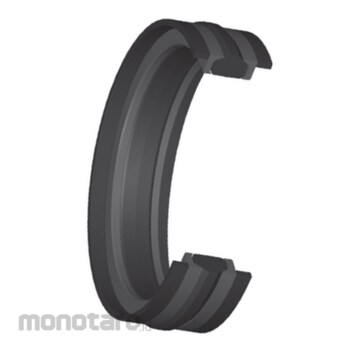

Hallite Double-Acting Piston Seals 50 5.6x2.5mm 1pc

Design
The Hallite 50 is a double acting seal designed for light duty applications using either one piece or split pistons to ISO 6547
housings.
It comprises a rubber seal, two split support rings and two split bearings, located either side of the seal. The nitrile rubber seal
has proved itself to be extremely wear resistant in service.
It is designed to be compressed by the housing to ensure a low pressure seal and when pressurised be protected from
extrusion damage by the extending lips of the support ring. A tough flexible polymer is used for the support ring which is scarf
cut for assembly and to protect the seal from damage.
A rectangular reinforced nylon bearing completes the assembly and provides the seal and piston with support and guidance.
The proportions of this range of piston seals have been determined to give a satisfactory performance when used with the
recommended operating conditions.
Note: Other sizes of this design of seal are shown under Hallite 53, 64 and 68.
NB: Part numbers suffixed by “‡” indicate housing sizes to meet ISO 6547.
