High-capacity open/close rocker switch with reset function Effective for energy saving with reset function by external signal.
An original switching mechanism provides excellent inrush current resistance and 20A switching.
The Contact configuration is double pole double throw. Contact gap 3mm or more.
UL and cUL certified. Compliant with EN standards.

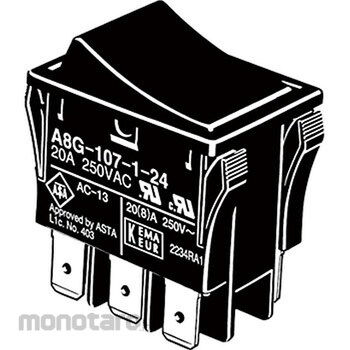

OMRON Rocker Switch with Reset Function A8G A8G-107-1-24 1pc
Rp389.900
Persediaan
Spesifikasi Produk
| Model Number | A8G-107-1-24 |
|---|---|
| Unit | 1pc |
| Contact Type | Double pole double throw (DPDT) |
| Electrical Durability | 100 or more (with DC500V mega) |
| Operation Ambient Temperature (°С) | -10 to +55 (with no icing or condensation) |
| Mechanical Durability | Switch operation: 100,000 times or more |
| Allowable Operation Frequency (times/minute) | Mechanical: (switch operation) 7 or less, (coil operation) 7 or less Electrical: 7 or less |
| Shock Resistance Malfunction (m/s²) | 98 or more |
| Shock Resistance (m/s2) | Up to 500 |
| Ambient Relative Humidity (RH) | 45 to 85 |
| Cap Color | black |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Withstand Voltage (V/minute) | Between terminals of the same polarity, between terminals of different polarity: AC 2000 50/60Hz Between live metal parts and ground: AC 4000 50/60Hz |
| Button Color | black |
| AS ONE Part Number | 64-3339-36 |
| Vibration Malfunction Frequency (Hz) | 10-55 Double amplitude 1.5mm (malfunction within 1ms) |
| M Code | 39028157 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 23 November 2021 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Locker switch for high capacity opening and closing with reset function Energy saving with reset function by external signal.
By the unique opening and closing mechanism, it is possible to open and close the excellent projection resistance and 20a.
Contact composition is 2 pole twice. More than 3mm contact gap.
UL, CUL acquisition. EN standard compliant.
